SLP471M450H4P3 - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Snap In 470uF 450V 20%

Download SLP471M450H4P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLP471M450H4P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

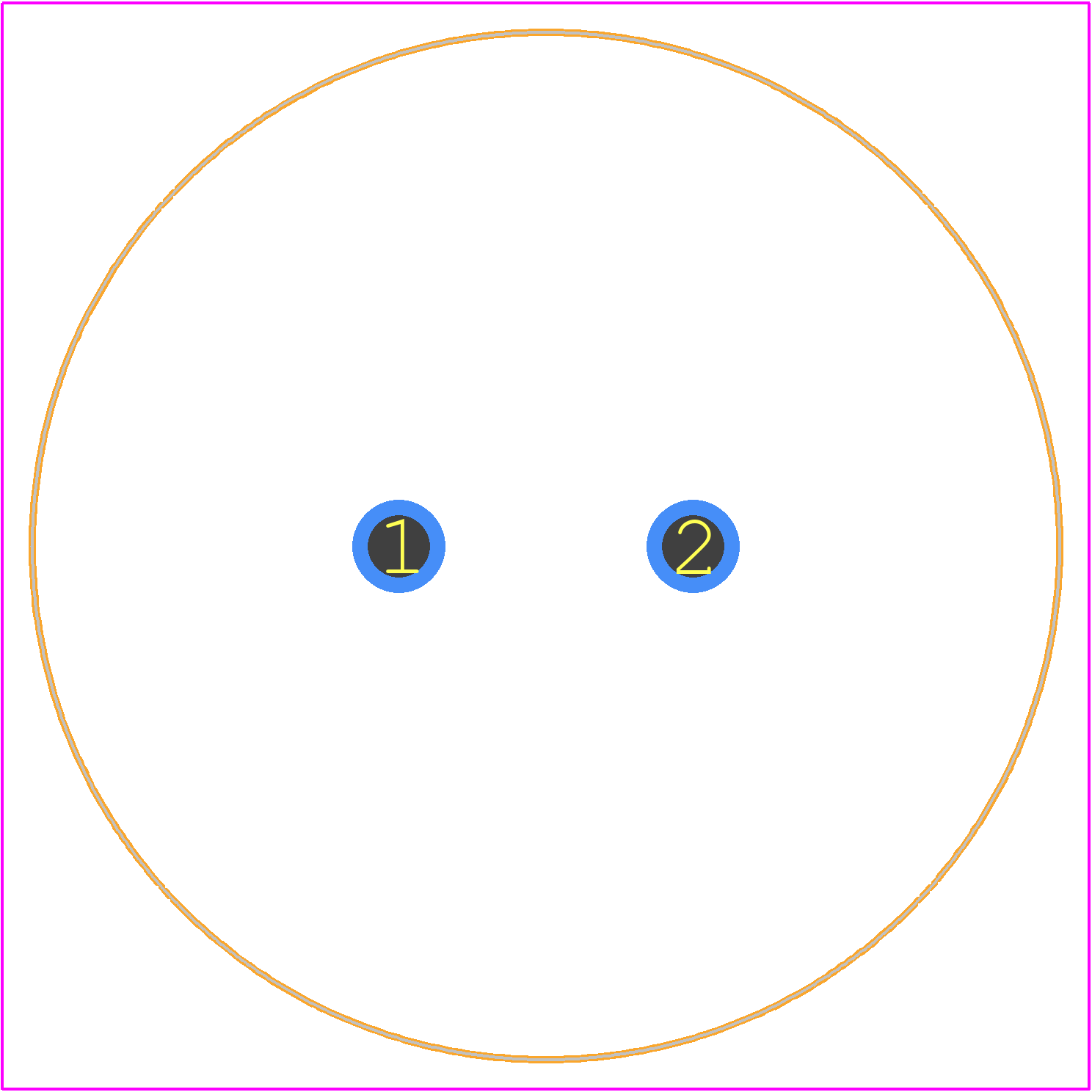

SLP471M450H4P3 - Cornell Dubilier PCB footprint - Other - Other - SLP471M450H4P3-1
click to zoom
3D Models
SLP471M450H4P3 - Cornell Dubilier - 3D model - Other - SLP471M450H4P3-1
click to zoom

SLP471M450H4P3 Details

  • Manufacturer Part Number:

    SLP471M450H4P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    706 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.3797 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1770 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN
