SLP472M100H4P3 - Cornell Dubilier

Description: Cornell-Dubilier Aluminium Electrolytic Capacitor 4700μF 100V dc 35mm H4 SLP Series, Through Hole Electrolytic, ±20%

Download SLP472M100H4P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLP472M100H4P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

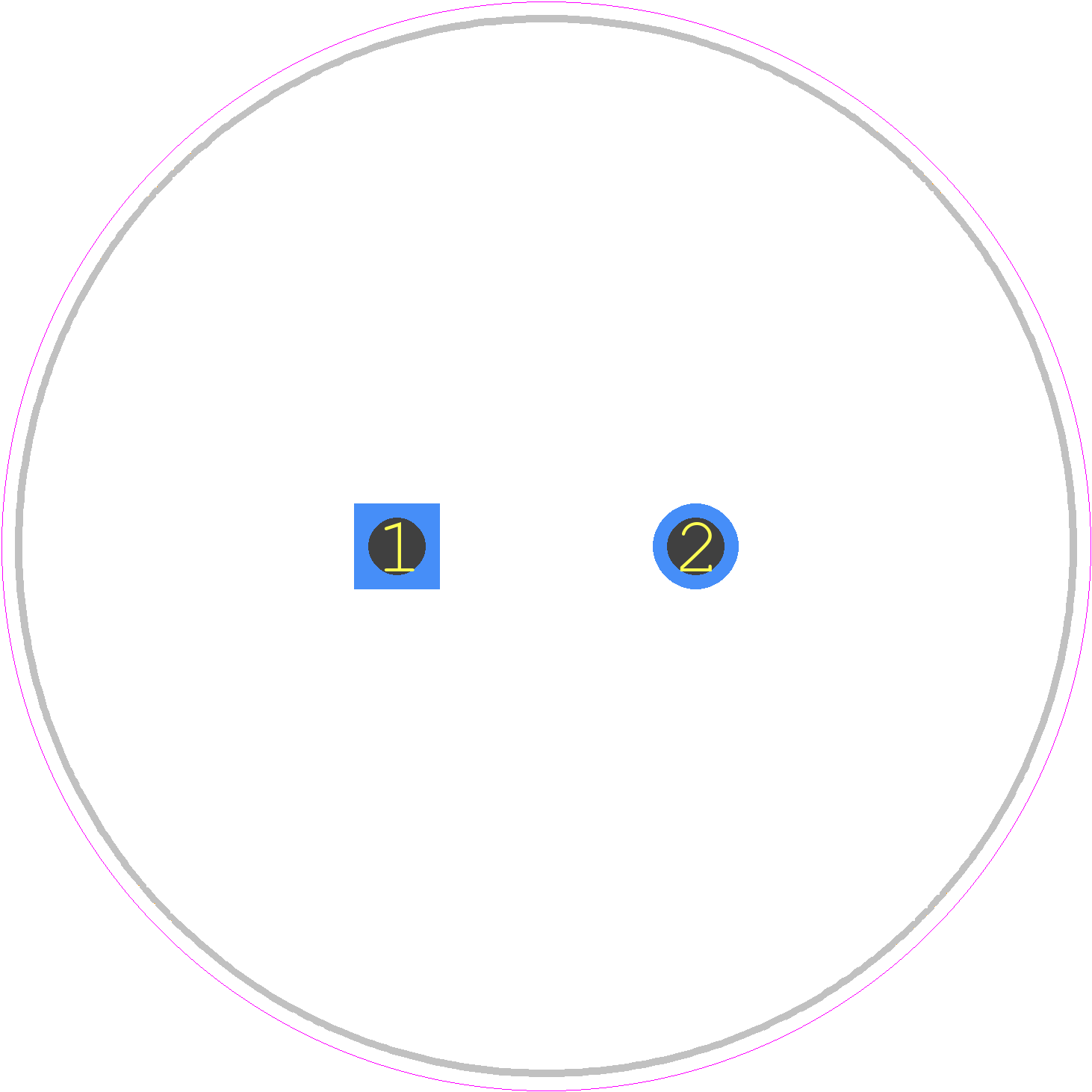

SLP472M100H4P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SLP472M100H4P3
click to zoom
3D Models
SLP472M100H4P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - SLP472M100H4P3
click to zoom

SLP472M100H4P3 Details

  • Manufacturer Part Number:

    SLP472M100H4P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    56 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.0567 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    3800 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLP472M100H4P3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Handle the component by the body, avoiding touching the leads or electrical contacts. Store the component in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions to prevent damage.
  • The maximum voltage derating for the SLP472M100H4P3 is 10% of the rated voltage. This means that if the rated voltage is 100V, the maximum voltage derating would be 10V.
  • While the SLP472M100H4P3 is suitable for high-frequency applications, its performance may degrade above 1 MHz. It's essential to evaluate the component's performance in your specific application and consider using a more suitable component if necessary.
  • The ESR of the SLP472M100H4P3 can be determined by measuring the impedance of the component at a specific frequency (e.g., 100 kHz) using an impedance analyzer or a network analyzer. The ESR is typically specified in the datasheet, but it may vary depending on the specific application and operating conditions.
