SLPX153M010C1P3 - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Snap In 15000uF 10V 20% 85C

Download SLPX153M010C1P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLPX153M010C1P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

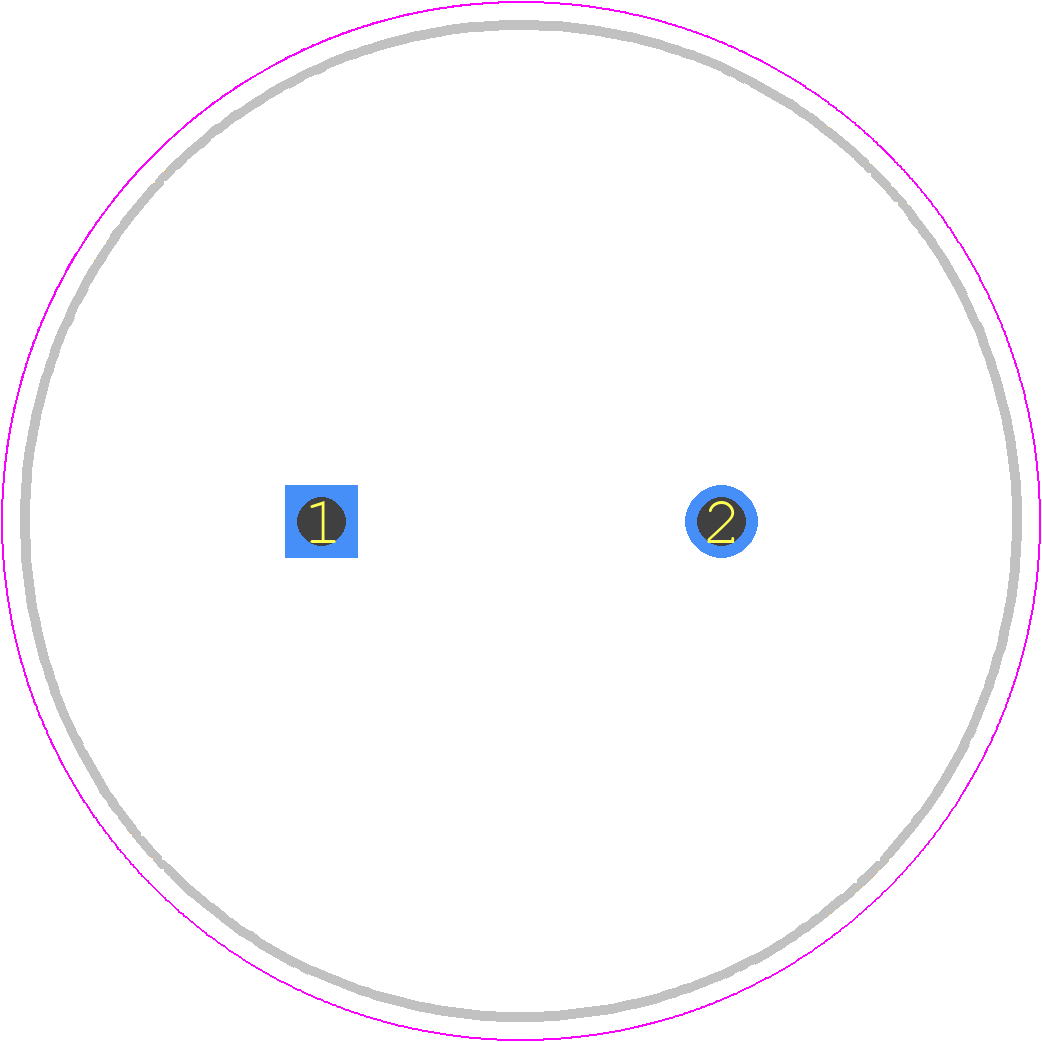

SLPX153M010C1P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SLPX153M010C1P3
click to zoom
3D Models
SLPX153M010C1P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - SLPX153M010C1P3
click to zoom

SLPX153M010C1P3 Details

  • Manufacturer Part Number:

    SLPX153M010C1P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    15000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    49 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.1619 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    2880 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLPX153M010C1P3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier Electronics Inc to ensure the capacitor's reliability and performance.
  • Yes, the SLPX153M010C1P3 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its performance and reliability in applications with mechanical stress.
  • Yes, the SLPX153M010C1P3 is suitable for use in high-altitude applications. It meets the derating requirements for altitude as specified in the datasheet, and its performance is not significantly affected by high altitudes.
  • Yes, the SLPX153M010C1P3 is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, which ensures its performance and reliability in applications with high humidity.
  • The ESR of SLPX153M010C1P3 is not explicitly stated in the datasheet. However, according to Cornell Dubilier Electronics Inc, the typical ESR of this capacitor is around 10-15 mohms at 100 kHz and 20°C.
