SLPX153M035E7P3 - Cornell Dubilier

Description: Cornell-Dubilier 15000μF 35 V dc Aluminium Capacitor E7, SLPX Series 1000 (Shelf) h, 3000 (Endurance) h 30 x 40mm

Download SLPX153M035E7P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLPX153M035E7P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

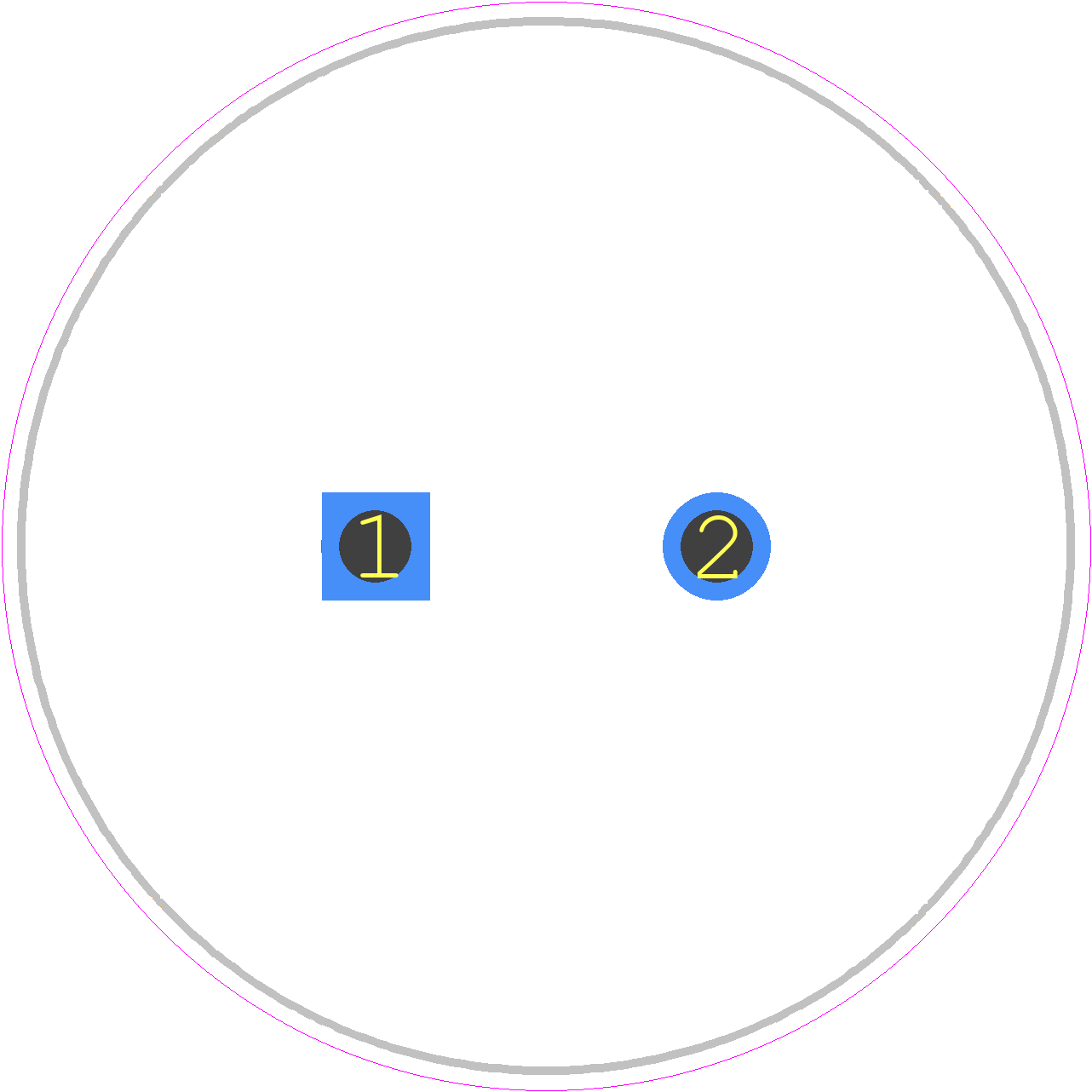

SLPX153M035E7P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SLPX (30 x 40)
click to zoom
3D Models
SLPX153M035E7P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - SLPX (30 x 40)
click to zoom

SLPX153M035E7P3 Details

  • Manufacturer Part Number:

    SLPX153M035E7P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    7

  • Capacitance:

    15000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    35 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.1737 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    4800 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLPX153M035E7P3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for SLPX153M035E7P3 is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, SLPX153M035E7P3 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which includes sinusoidal vibration at 10-2000 Hz, 10 G peak acceleration, and 3 hours per axis.
  • Yes, SLPX153M035E7P3 is suitable for use in high-altitude applications. It meets the derating requirements for altitude up to 80,000 feet (24,384 meters) according to MIL-PRF-123.
  • Yes, SLPX153M035E7P3 is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, which includes 85°C (185°F) and 85% relative humidity for 1000 hours.
  • The ESR of SLPX153M035E7P3 is typically around 10-20 mΩ at 100 kHz, but this value can vary depending on the frequency and operating conditions. It's recommended to consult the manufacturer's application notes or contact their technical support for more information.
