The recommended PCB footprint for the SLPX182M100E1P3 can be found in the manufacturer's application notes or on their website. It typically includes a recommended land pattern, solder mask, and silk screen layout to ensure proper assembly and reliability.
To prevent damage, handle the SLPX182M100E1P3 by the edges, avoid touching the leads or case, and use an anti-static wrist strap or mat. Also, ensure the PCB is clean and dry before assembly, and use a soldering iron with a temperature-controlled tip to prevent overheating.
The maximum allowable voltage derating for the SLPX182M100E1P3 is typically 80% to 90% of the rated voltage, depending on the application and environmental conditions. However, it's recommended to consult with the manufacturer or a qualified engineer to determine the appropriate derating for a specific design.
The SLPX182M100E1P3 is rated for operation up to 125°C, but its performance and lifespan may be affected at high temperatures. It's essential to consult the datasheet and manufacturer's guidelines for temperature derating and to consider using a heat sink or other thermal management techniques if necessary.
The SLPX182M100E1P3 meets various safety certifications, such as UL, ENEC, and RoHS. To ensure compliance, verify the certifications listed on the datasheet and manufacturer's website, and consult with a qualified engineer or safety expert if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLPX182M100E1P3 Overview

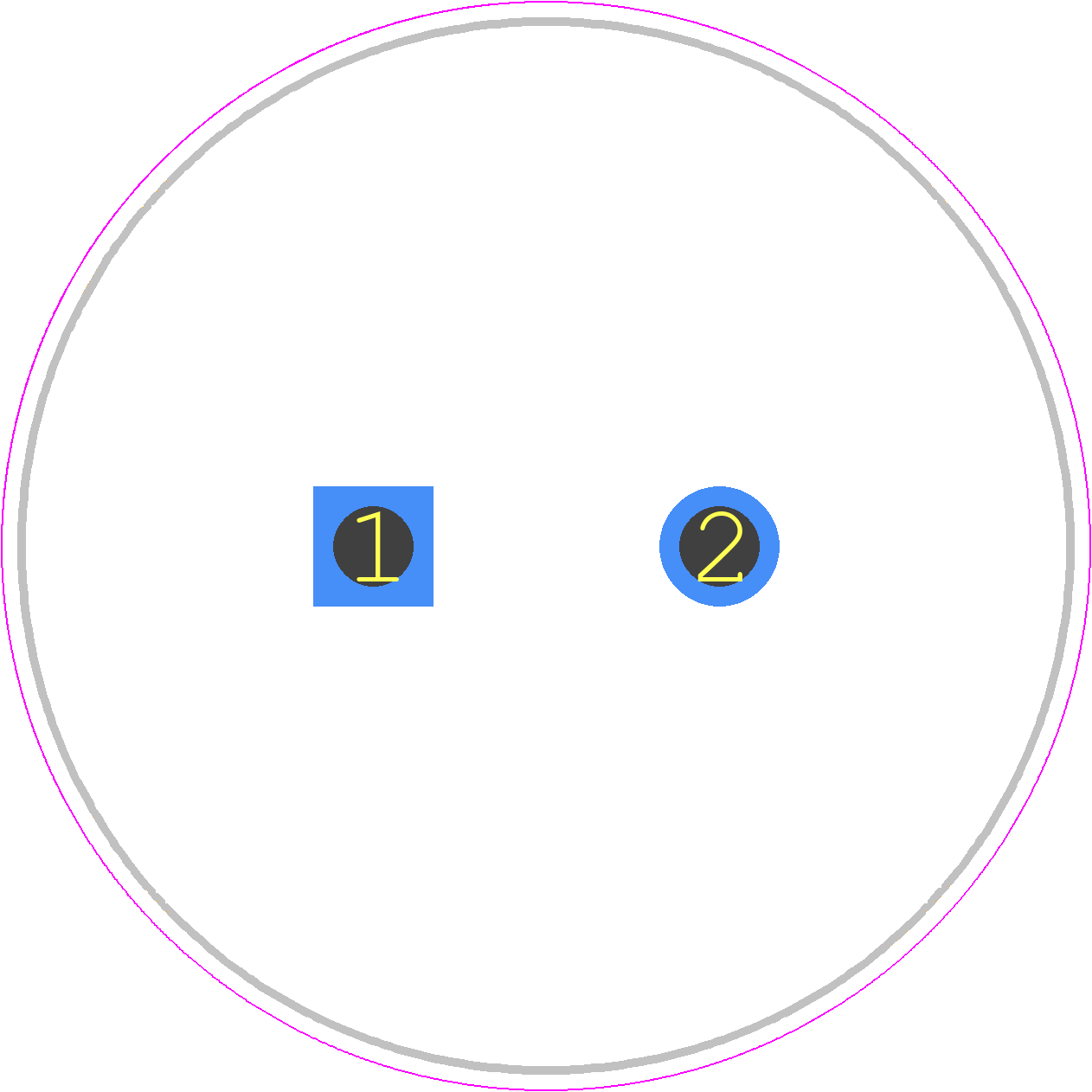

Use the download button to access the SLPX182M100E1P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLPX1,
or try a keyword search, such as Aluminum Electrolytic Capacitors
