SLPX223M050H9P3 - Cornell Dubilier

Description: SLPX 85degC Snap-in cap 22,000uF 50V Cornell-Dubilier 22000μF 50 V dc Aluminium Electrolytic Capacitor H9, SLPX Series 3000h 35 Dia. x 50mm

Download SLPX223M050H9P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLPX223M050H9P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

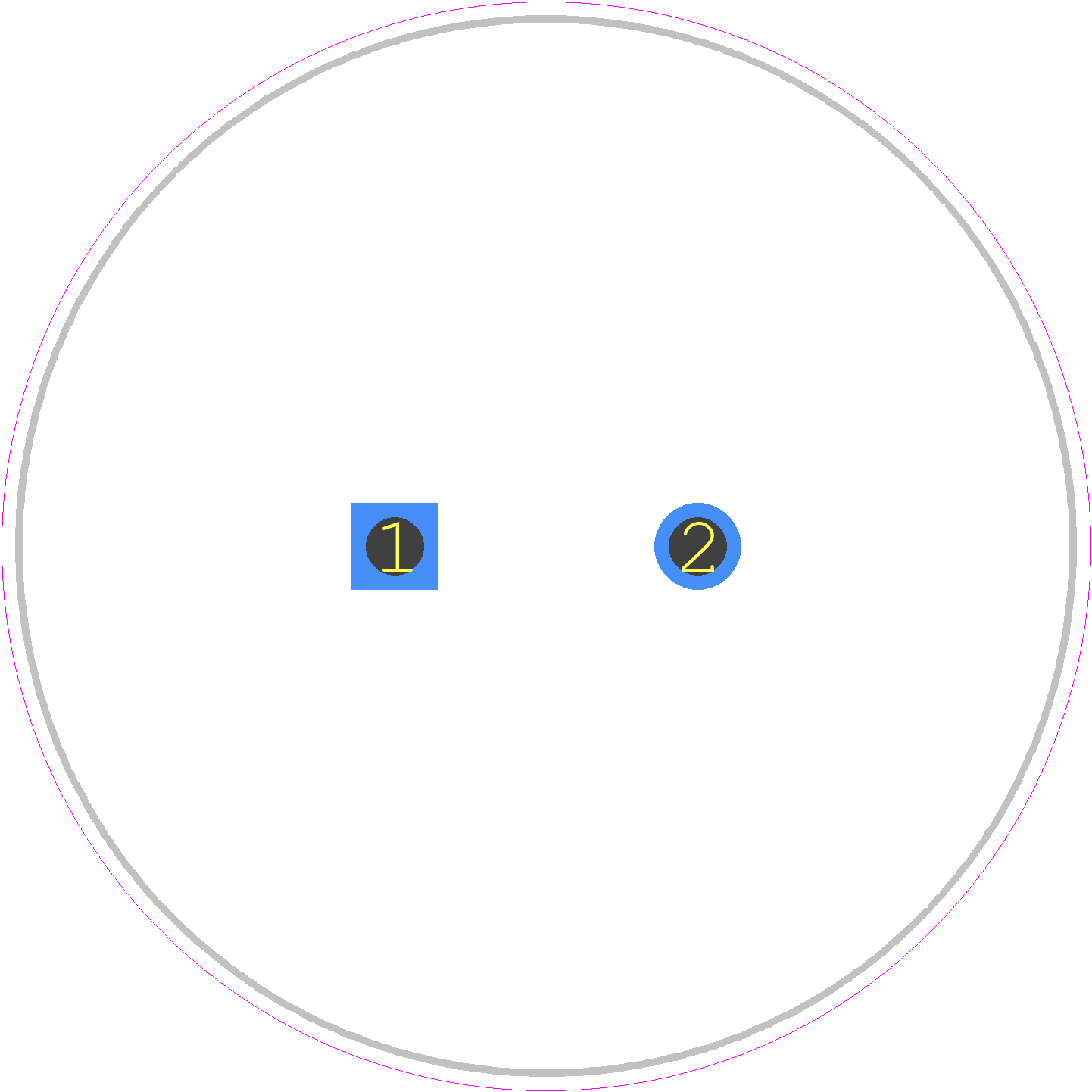

SLPX223M050H9P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SLPX(H9)
click to zoom
3D Models
SLPX223M050H9P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - SLPX(H9)
click to zoom

SLPX223M050H9P3 Details

  • Manufacturer Part Number:

    SLPX223M050H9P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    22000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    21 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    3.1464 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    7890 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN
