SLPX392M100H5P3 - Cornell Dubilier

Description: Alu-Elektrolytkondensatoren - einrastend 3900uF 100V 20% 85C

Download SLPX392M100H5P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLPX392M100H5P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

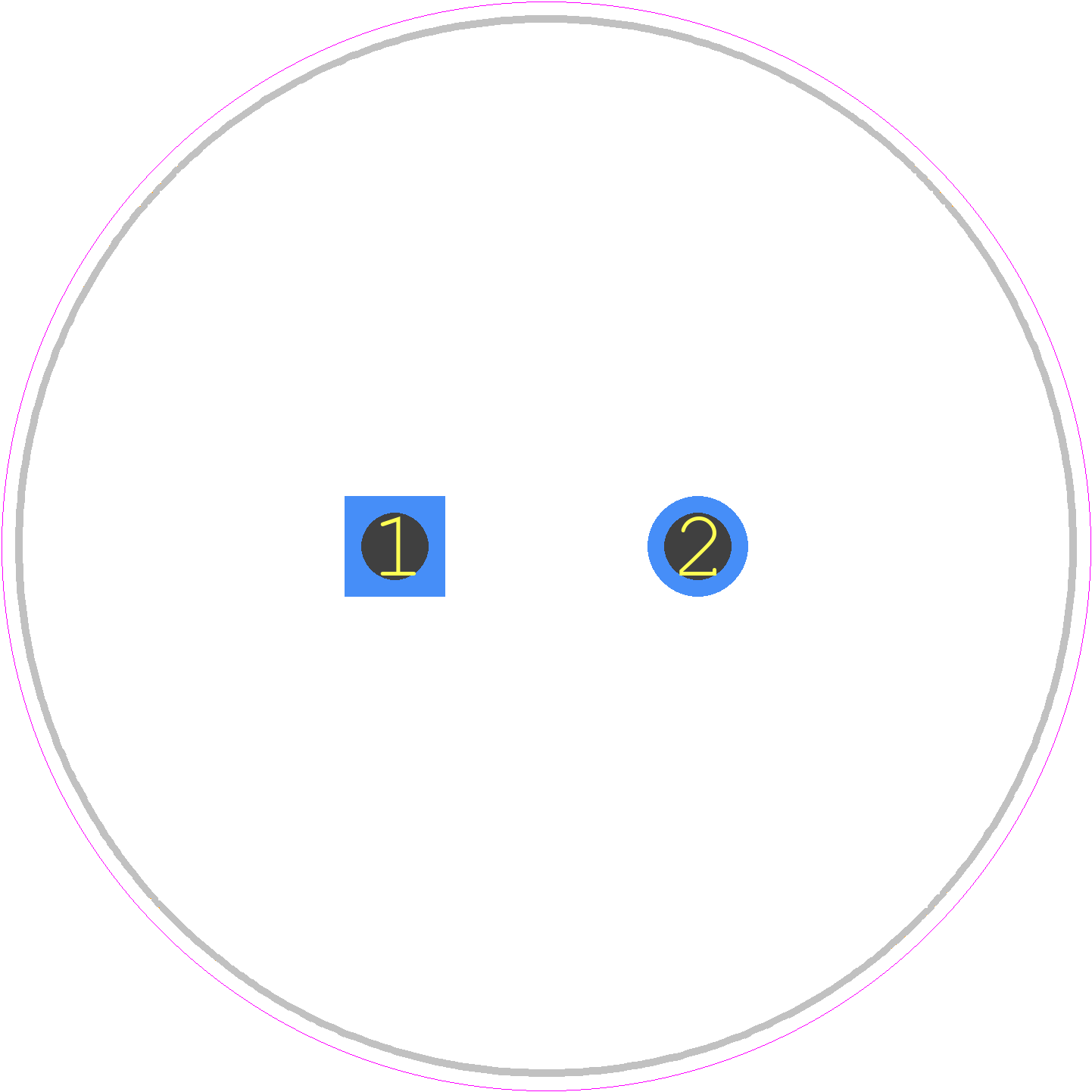

SLPX392M100H5P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SLPX392M100H5P3
click to zoom
3D Models
SLPX392M100H5P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - SLPX392M100H5P3
click to zoom

SLPX392M100H5P3 Details

  • Manufacturer Part Number:

    SLPX392M100H5P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    3900 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    68 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.8735 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    4610 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLPX392M100H5P3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SLPX392M100H5P3 is a rectangular pad with dimensions of 12.7mm x 7.62mm, with a 1.27mm diameter hole in the center for the radial lead.
  • Yes, the SLPX392M100H5P3 is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6, with a vibration amplitude of 10g peak acceleration.
  • Yes, the SLPX392M100H5P3 is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (500°F) for a maximum of 10 seconds.
  • The maximum operating temperature range for the SLPX392M100H5P3 is -40°C to +125°C, with a derated capacitance above 85°C.
  • Yes, the SLPX392M100H5P3 is designed to operate in humid environments and meets the requirements of IEC 60068-2-78, with a relative humidity of 95% at 40°C.
