SLPX682M050A9P3 - Cornell Dubilier

Description: 6800 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 68mOhm @ 120Hz 3000 Hrs @ 85°C , -40°C ~ 85°C

Download SLPX682M050A9P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLPX682M050A9P3 - Cornell Dubilier - PCB symbol
click to zoom

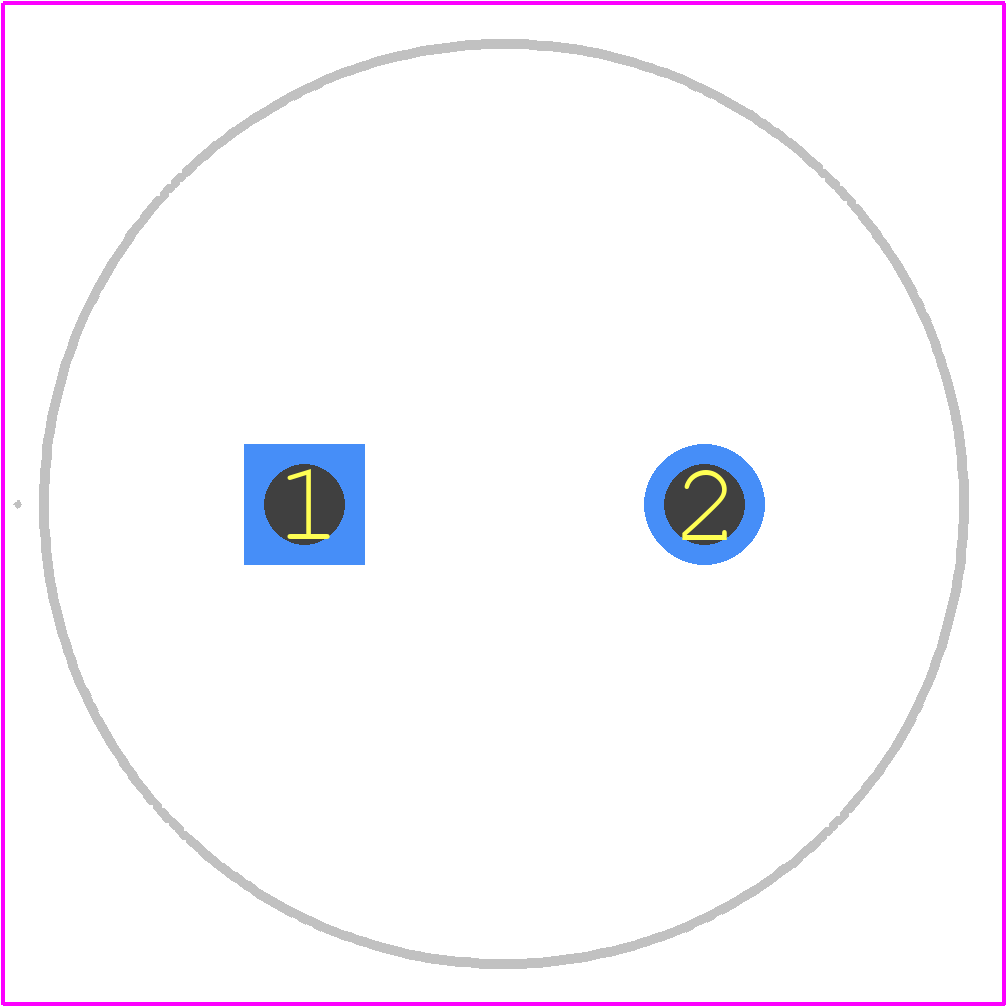

PCB Footprints
SLPX682M050A9P3 - Cornell Dubilier PCB footprint - Other - Other - 22mm x 50mm_2026-1.15
click to zoom
3D Models
SLPX682M050A9P3 - Cornell Dubilier - 3D model - Other - 22mm x 50mm_2026-1.15
click to zoom

SLPX682M050A9P3 Details

  • Manufacturer Part Number:

    SLPX682M050A9P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    6800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    68 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.7493 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    3940 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLPX682M050A9P3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for SLPX682M050A9P3 can be found in the Cornell Dubilier Electronics Inc. application note AN-101, which provides guidelines for PCB layout and land pattern design.
  • Thermal management of SLPX682M050A9P3 can be achieved through proper PCB design, using thermal vias, and applying thermal interface materials. It's also recommended to follow the guidelines in the datasheet for maximum operating temperature and power dissipation.
  • The ESR of SLPX682M050A9P3 is not explicitly stated in the datasheet, but it can be estimated based on the capacitor's impedance and resonant frequency. For a more accurate value, it's recommended to contact Cornell Dubilier Electronics Inc. directly or consult their application notes.
  • SLPX682M050A9P3 is designed to meet the requirements of various industries, including automotive and industrial applications, which often involve high-vibration environments. However, it's recommended to consult with Cornell Dubilier Electronics Inc. or perform additional testing to ensure the capacitor's reliability in specific vibration conditions.
  • The moisture sensitivity level (MSL) of SLPX682M050A9P3 is not explicitly stated in the datasheet. However, it's recommended to follow the standard MSL classification and handling procedures for surface-mount devices to prevent damage during assembly and storage.
