SLPX682M080H7P3 - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Snap In 6800uF 80V 20% 85C

Download SLPX682M080H7P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLPX682M080H7P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

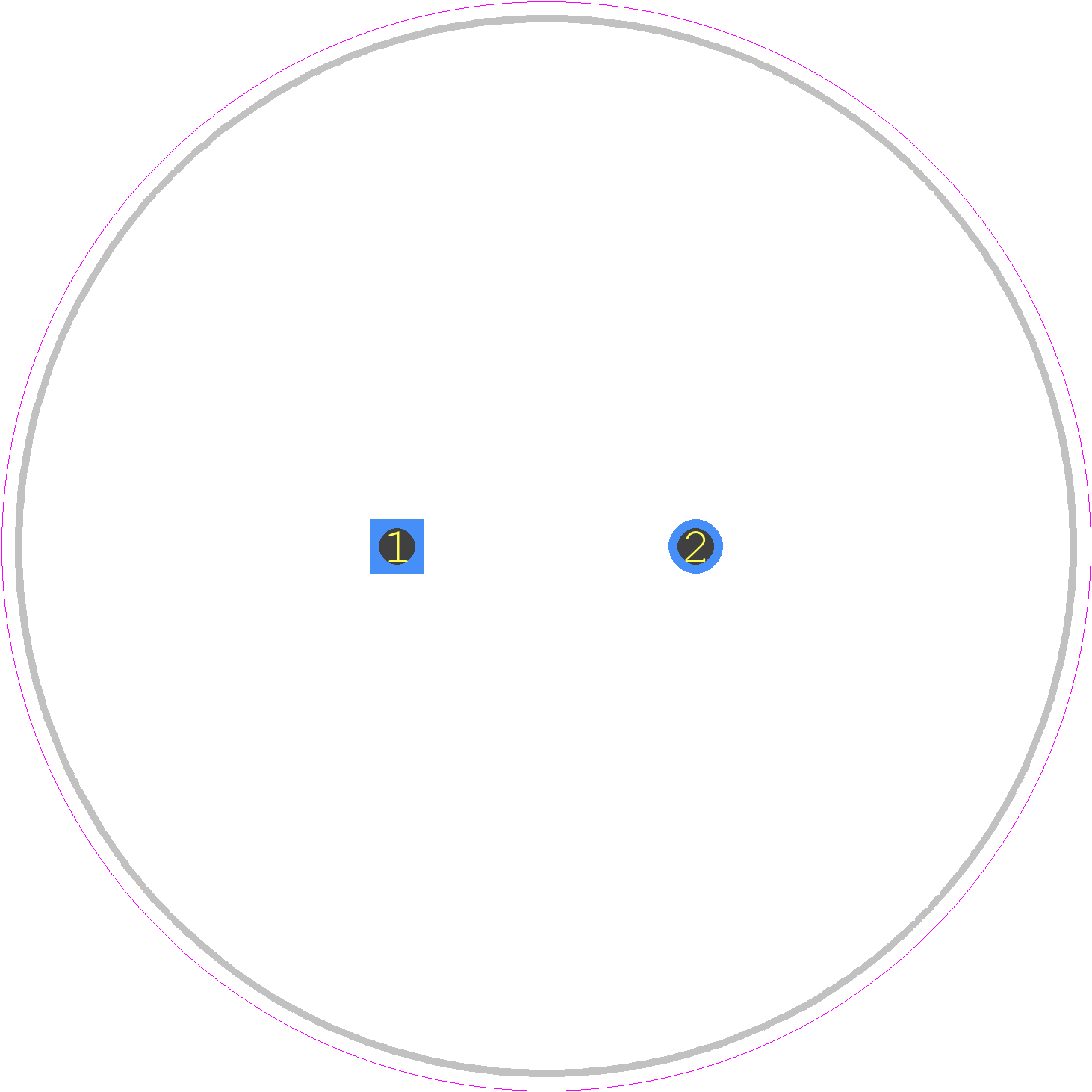

SLPX682M080H7P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SLPX682M080H7P
click to zoom
3D Models
SLPX682M080H7P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - SLPX682M080H7P
click to zoom

SLPX682M080H7P3 Details

  • Manufacturer Part Number:

    SLPX682M080H7P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    6800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    49 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.2127 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Ripple Current:

    5240 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLPX682M080H7P3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SLPX682M080H7P3 is a rectangular pad with dimensions of 12.7mm x 7.62mm, with a 1.27mm diameter hole in the center for the radial lead.
  • Yes, the SLPX682M080H7P3 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the SLPX682M080H7P3 is compatible with lead-free soldering processes, with a melting point of 260°C and a peak reflow temperature of 240°C.
  • The maximum operating temperature range for the SLPX682M080H7P3 is -40°C to +125°C, with a derating of 1.25% per °C above 85°C.
  • Yes, the SLPX682M080H7P3 is designed to operate in humid environments, with a humidity rating of 95% RH at 40°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLPX682M080H7P3 Overview

Use the download button to access the SLPX682M080H7P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLPX6, or try a keyword search, such as Ceramic Capacitors
