SLPX682M100H9P3 - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Snap In 6800uF 100V 20% 85C

Download SLPX682M100H9P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLPX682M100H9P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

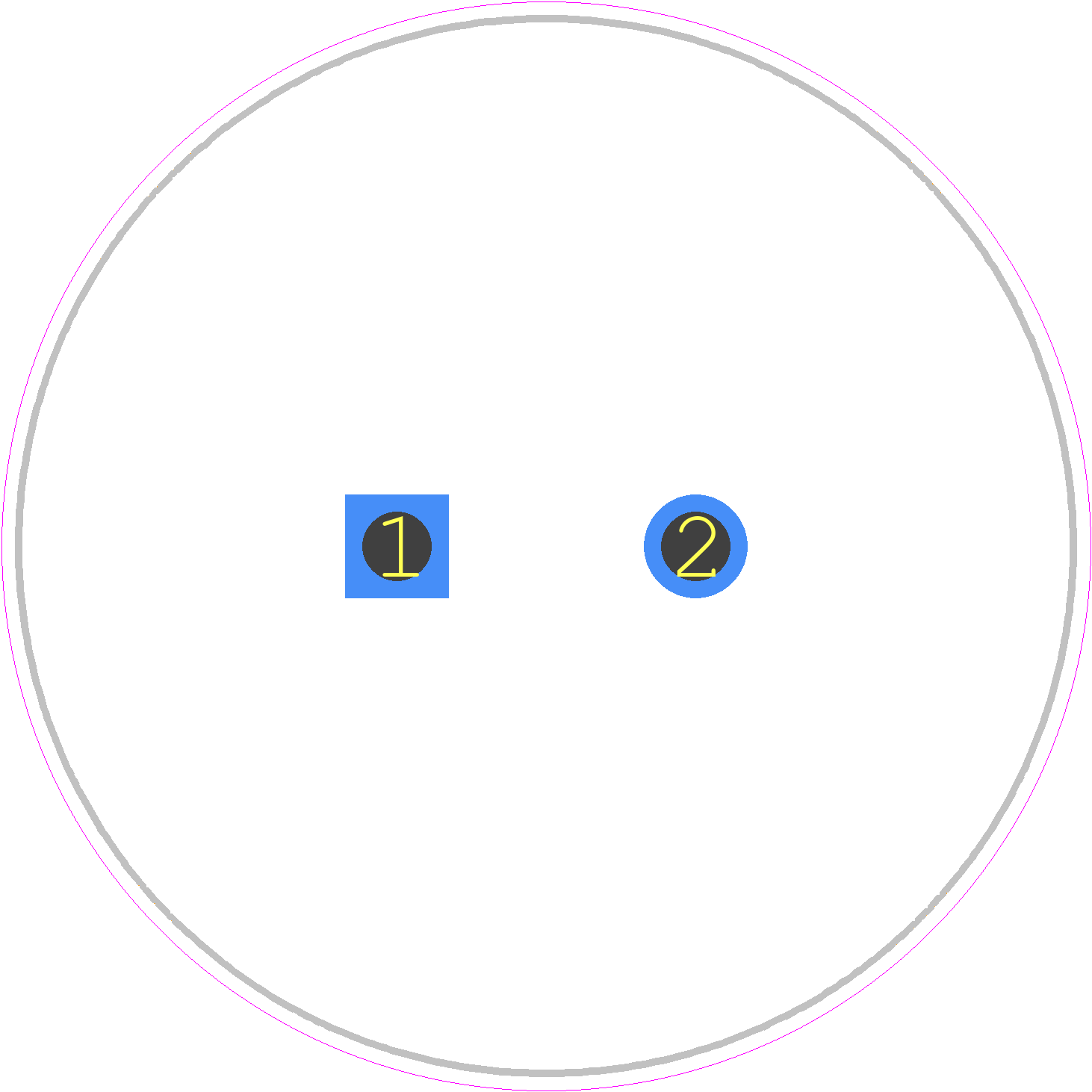

SLPX682M100H9P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35*50
click to zoom
3D Models
SLPX682M100H9P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 35*50
click to zoom

SLPX682M100H9P3 Details

  • Manufacturer Part Number:

    SLPX682M100H9P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    6800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    39 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.4739 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    6010 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLPX682M100H9P3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the SLPX682M100H9P3 is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and securing of the component to prevent mechanical stress and damage.
  • The recommended storage condition for the SLPX682M100H9P3 is in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and humidity below 70%. Avoid storing the component in direct sunlight or near heat sources.
  • Yes, the SLPX682M100H9P3 is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable assembly.
  • The maximum allowable DC voltage derating for the SLPX682M100H9P3 is 80% of the rated voltage. Exceeding this derating may reduce the component's lifespan or cause premature failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLPX682M100H9P3 Overview

Use the download button to access the SLPX682M100H9P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLPX6, or try a keyword search, such as Ceramic Capacitors
