Part Image

SM08B-CPTK-1A-TB - JST (JAPAN SOLDERLESS TERMINALS)

Description: CONNECTOR, HEADER, 8POS, 2ROW, 2MM; Pitch Spacing:2mm; No. of Contacts:8Contacts; Gender:Header; Product Range:CPT Series; Contact Termination Type:Crimp; No. of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact RoHS Compliant: Yes

Download SM08B-CPTK-1A-TB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

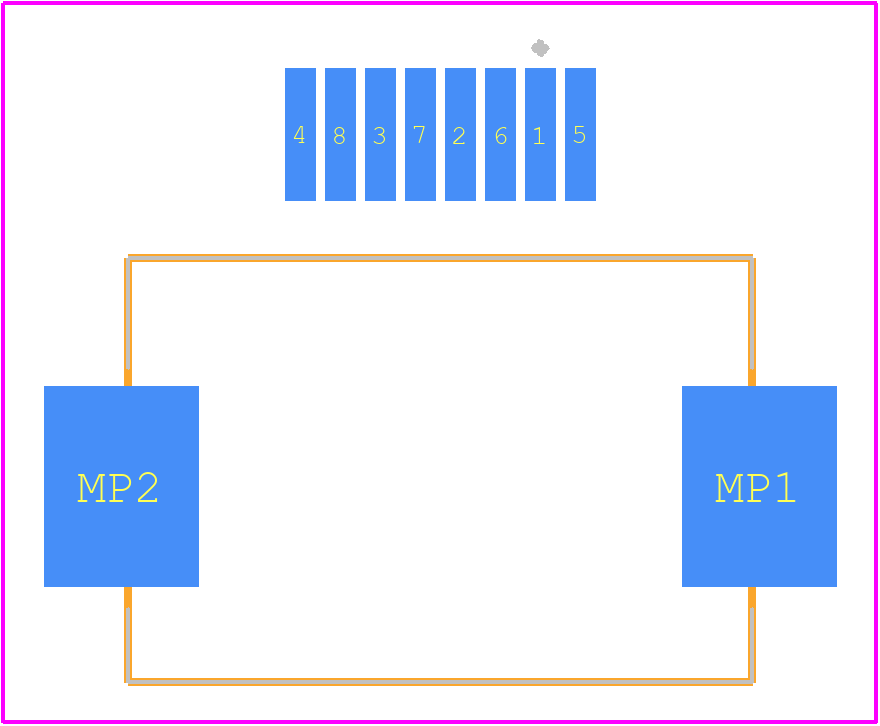

SM08B-CPTK-1A-TB - JST (JAPAN SOLDERLESS TERMINALS) PCB footprint - Other - Other - SM08B-CPTK-1A-TB-4
click to zoom
3D Models
SM08B-CPTK-1A-TB - JST (JAPAN SOLDERLESS TERMINALS)  - 3D model - Other - SM08B-CPTK-1A-TB-4
click to zoom

SM08B-CPTK-1A-TB Details

  • Manufacturer Part Number:

    SM08B-CPTK-1A-TB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    JST Manufacturing

  • Risk Rank:

    2.11

  • Additional Feature:

    LOW PROFILE; SIDE ENTRY

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SM08B-CPTK-1A-TB Overview

Use the download button to access the SM08B-CPTK-1A-TB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM08B, or try a keyword search, such as Combination Line Connectors
