Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Implement proper thermal management, such as heat sinking and airflow, to keep the device within the specified temperature range. Also, consider using a thermistor or temperature sensor to monitor the device temperature.
When selecting external components, consider the input and output capacitors, inductors, and resistors. Choose components with low ESR, high Q, and suitable temperature ratings. Ensure that the components can handle the maximum current and voltage ratings of the device. Additionally, consider the PCB layout and parasitic effects when selecting components.
To troubleshoot common issues, start by verifying the input voltage, output voltage, and current ratings. Check the PCB layout and ensure that the device is properly soldered. Use an oscilloscope to measure the output voltage and current waveforms. Check for noise, ringing, or oscillations, and adjust the external components or PCB layout as needed. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
To ensure EMI and EMC compliance, follow good PCB design practices, such as using a solid ground plane, minimizing noise coupling, and using shielding or filtering components. Ensure that the device is properly decoupled, and consider using a common-mode choke or EMI filter. Consult the datasheet and relevant standards (e.g., CISPR 22) for guidance on EMI and EMC compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM72480SD-120/NOPB Overview

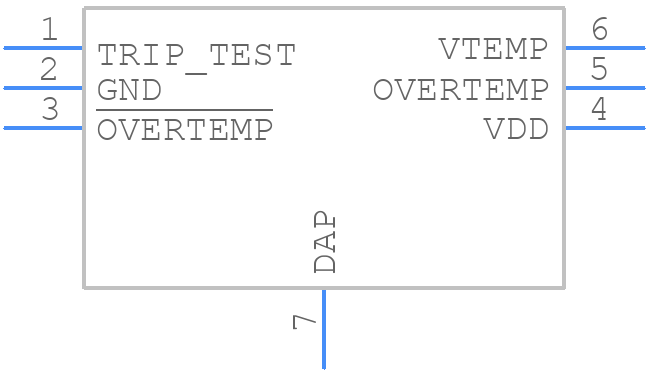

Use the download button to access the SM72480SD-120/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM724,
or try a keyword search, such as Temperature Sensors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
