Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
To ensure reliable operation, follow the recommended operating conditions, use a suitable thermal management system, and consider the device's thermal characteristics, such as junction temperature and thermal resistance.
Monitor the input voltage, output voltage, current, and temperature to ensure the device operates within the recommended specifications. Also, keep an eye on the device's power dissipation and thermal performance.
Consult the datasheet and application notes for troubleshooting guidelines. Common issues can be resolved by checking the input voltage, output load, and PCB layout. For more complex issues, consider using a oscilloscope or logic analyzer to debug the system.
Yes, the SM72480SDE-120/NOPB is a high-frequency device, and EMI/EMC considerations are crucial. Follow good PCB design practices, use shielding, and consider adding EMI filters or ferrite beads to minimize radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM72480SDE-120/NOPB Overview

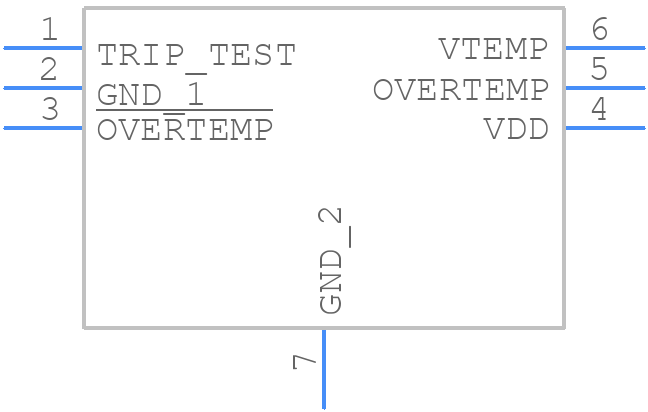

Use the download button to access the SM72480SDE-120/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM724,
or try a keyword search, such as Temperature Sensors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
