For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to use thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the component placement and routing symmetrical can help reduce thermal gradients.
To ensure reliable operation across the entire operating temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure that the device is properly soldered and mounted. Additionally, consider using a thermocouple or temperature sensor to monitor the device temperature.
To mitigate EMI and RFI, it is recommended to use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input lines. Additionally, consider using a filter capacitor on the output lines and ensuring that the device is properly grounded.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage and current, and checking the output voltage and current. Check for any signs of overheating, and verify that the device is properly soldered and mounted. Use an oscilloscope to check for any noise or oscillations on the output lines.
The recommended input capacitor is a 10uF to 22uF X7R or X5R ceramic capacitor, and the recommended output capacitor is a 10uF to 22uF X7R or X5R ceramic capacitor. However, the optimal capacitor values may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SM72485SDE/NOPB Overview

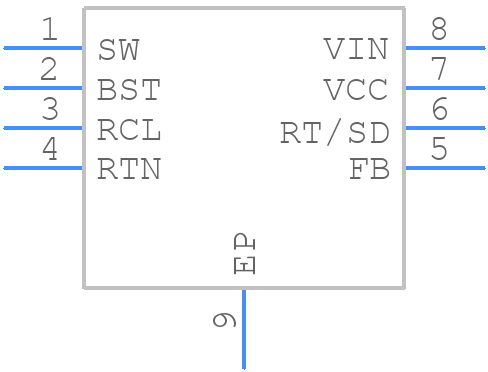

Use the download button to access the SM72485SDE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SM724,
or try a keyword search, such as Switching Regulator or Controllers
