SMF31K8FT - TE Connectivity

Description: 1.8K ohm, Metal Film, Power Resistor, 1 %, 3 W, ±100 ppm/°C, Solder, 2 Terminations, 5 mm [.197 in] Height, 10.5 mm [.413 in] Length, CGS SM

Download SMF31K8FT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SMF31K8FT - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

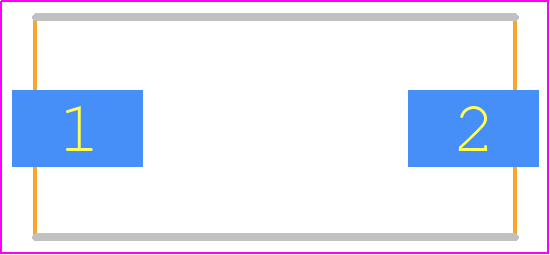

SMF31K8FT - TE Connectivity PCB footprint - Resistor Moulded - Resistor Moulded - SMF3
click to zoom
3D Models
SMF31K8FT - TE Connectivity - 3D model - Resistor Moulded - SMF3
click to zoom

SMF31K8FT Details

  • Manufacturer Part Number:

    SMF31K8FT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    19 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    FLAME PROOF

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    275 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    5 mm

  • Package Length:

    10.5 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    5.5 mm

  • Packing Method:

    TR

  • Physical Dimension:

    10.5mm x 5.5mm x 5mm

  • Rated Power Dissipation (P):

    3 W

  • Rated Temperature:

    20 °C

  • Resistance:

    1800 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    4122

  • Surface Mount:

    YES

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    500 V

SMF31K8FT Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of SMF31K8FT is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, SMF31K8FT is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B vibration standard, making it suitable for use in applications such as transportation and industrial control systems.
  • Yes, SMF31K8FT is compatible with lead-free soldering processes. It is designed to meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and can be soldered using lead-free solder alloys.
  • The maximum operating temperature range for SMF31K8FT is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the current rating at higher temperatures to ensure reliable operation.
  • SMF31K8FT has a moisture sensitivity level (MSL) rating of 1, which means it can withstand humid or wet environments. However, it's recommended to follow proper handling and storage procedures to prevent moisture ingress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SMF31K8FT Overview

Use the download button to access the SMF31K8FT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SMF31, or try a keyword search, such as Metal Film Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
