Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance.
The input capacitor value depends on the input voltage, output voltage, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 1-10uF, and ensure it's rated for the input voltage. TI also provides a capacitor selection guide in the datasheet.
The SN10501DGN is rated for operation up to 125°C, but it's essential to consider the ambient temperature, PCB temperature, and thermal resistance when designing the system. Ensure proper heat sinking and thermal management to maintain reliable operation.
To ensure stability, follow the recommended component values and PCB layout. Additionally, ensure the output capacitor is properly sized, and the feedback network is correctly configured. TI provides a stability analysis guide in the datasheet to help with this process.
The SN10501DGN is designed to operate with an input voltage range of 2.7-5.5V. Operating outside this range may affect performance, efficiency, or reliability. Ensure the input voltage is within the recommended range for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN10501DGN Overview

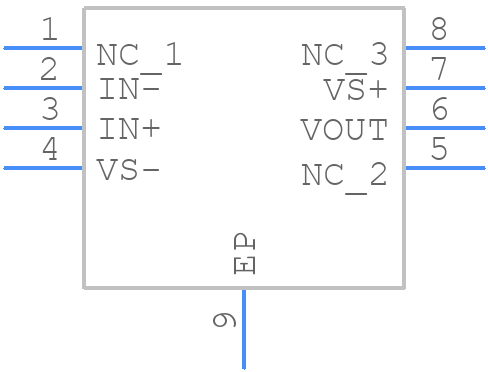

Use the download button to access the SN10501DGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN105,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
