IT CAN ALSO OPERATE WITH 2.7V TO 18V SINGLE SUPPLY
Bandwidth-Nom:
100000 kHz
Consumer IC Type:
VIDEO AMPLIFIER
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max:
22 mA
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
1.35 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
SN10501DR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the entire operating temperature range (-40°C to 125°C), it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using thermal vias, and selecting components with suitable temperature ratings. Additionally, consider using a thermally conductive material for the PCB substrate.
The internal oscillator has a typical accuracy of ±1.5% over the operating temperature range. To improve its accuracy, consider using an external crystal oscillator or a more accurate clock source. Additionally, ensure that the oscillator pins are properly decoupled and that the PCB layout minimizes noise coupling.
The SN10501DR has a built-in POR and BOR feature. To handle these features, ensure that the power supply is stable and within the recommended operating range. Use a suitable power-on reset circuit to ensure a clean power-up sequence. Additionally, consider using a voltage supervisor or a reset IC to provide a more robust reset function.
To ensure EMI and EMC compliance, follow good design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters or common-mode chokes. Additionally, consider using a spread-spectrum clock generator to reduce EMI emissions. Ensure that the PCB layout and component selection meet the relevant EMI and EMC standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN10501DR Overview

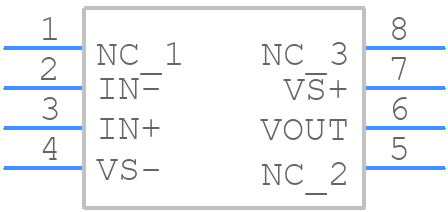

Use the download button to access the SN10501DR schematic symbol, PCB footprint, and 3D model.
