IT CAN ALSO OPERATE WITH 2.7V TO 18V SINGLE SUPPLY
Bandwidth-Nom:
100000 kHz
Consumer IC Type:
VIDEO AMPLIFIER
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
1.35 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
SN10502DGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the entire operating temperature range (-40°C to 125°C), it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using thermal vias, and selecting components with suitable temperature ratings. Additionally, ensure that the device is operated within its specified power dissipation limits.
Operating the SN10502DGN at a lower input voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher input voltage may cause excessive power consumption, increased heat generation, and potentially damage the device. It's recommended to operate the device within the specified input voltage range (2.7V to 3.6V) for optimal performance and reliability.
The SN10502DGN has built-in ESD protection, but it's still essential to follow proper ESD handling practices during manufacturing, assembly, and testing. Use ESD-safe materials, tools, and equipment, and ensure that the device is handled and stored in a static-protected environment.
When using the SN10502DGN in a high-reliability or safety-critical application, it's essential to follow Texas Instruments' guidelines for reliability and safety. This includes performing thorough testing, validation, and qualification, as well as ensuring that the device is operated within its specified parameters and environmental conditions. Additionally, consider implementing redundant or fail-safe designs to mitigate potential failures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN10502DGN Overview

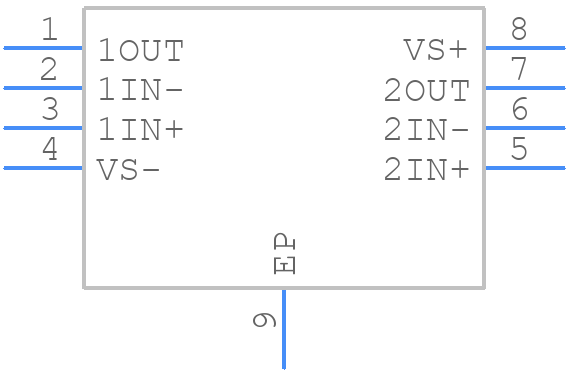

Use the download button to access the SN10502DGN schematic symbol, PCB footprint, and 3D model.
