SN200608044 - Texas Instruments

Description: Audio DSPs 6 Channel Digital Audio PWM Processor 38-TSSOP 0 to 70

Download SN200608044 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

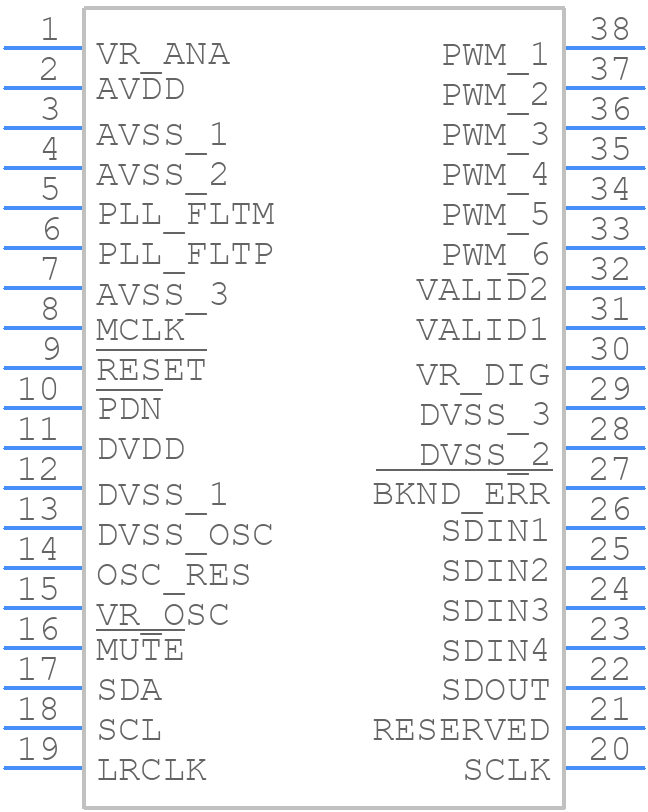

SN200608044 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN200608044 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0038A
click to zoom
3D Models
SN200608044 - Texas Instruments - 3D model - Small Outline Packages - DBT0038A
click to zoom

SN200608044 Details

  • Manufacturer Part Number:

    SN200608044

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

SN200608044 Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the VCC and VDD pins. Additionally, keep the signal traces short and away from the power planes to minimize noise and EMI.
  • The SN200608044 has a thermal pad on the bottom of the package. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink or a thermal via to dissipate heat. Keep the ambient temperature below 85°C for optimal operation.
  • The SN200608044 supports cable lengths up to 100 meters, depending on the cable type and quality. However, it's recommended to use cables with a characteristic impedance of 100 ohms and a maximum capacitance of 200 pF/m to ensure reliable operation.
  • The SN200608044 can be configured for half-duplex or full-duplex operation by setting the appropriate pins (e.g., TXEN, RXEN, and COL) and using the correct register settings. Refer to the datasheet and application notes for detailed configuration information.
  • TI recommends using a 100-ohm differential termination scheme for the input and output signals. For the input, use a 100-ohm resistor in series with a 100-nF capacitor. For the output, use a 100-ohm resistor in series with a 220-nF capacitor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN200608044 Overview

Use the download button to access the SN200608044 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN200, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
