SN65DSI84TPAPRQ1 - Texas Instruments

Description: Automotive Single Channel MIPI® DSI to Dual-Link LVDS Bridge

Download SN65DSI84TPAPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SN65DSI84TPAPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

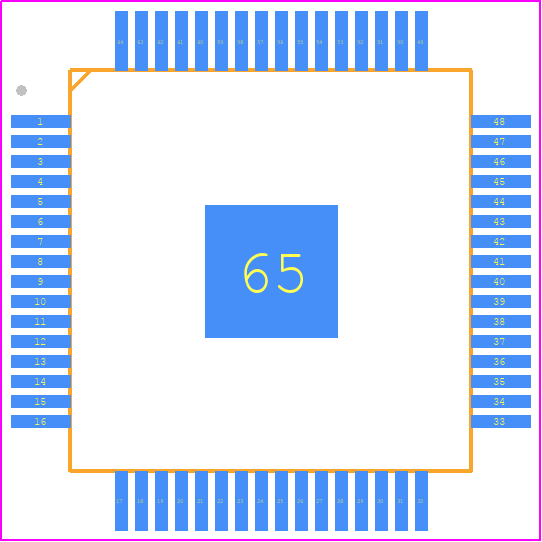

SN65DSI84TPAPRQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PAP (S-PQFP-64)
click to zoom
3D Models
SN65DSI84TPAPRQ1 - Texas Instruments - 3D model - Quad Flat Packages - PAP (S-PQFP-64)
click to zoom

SN65DSI84TPAPRQ1 Details

  • Manufacturer Part Number:

    SN65DSI84TPAPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-12-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    4000000 Mbps

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

SN65DSI84TPAPRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65DSI84TPAPRQ1 is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 3 meters (10 feet) at a data rate of 1.5 Gbps.
  • To configure the SN65DSI84TPAPRQ1 for MIPI DSI mode, you need to set the MODE pin to a logic high level and ensure that the DSI_CLK pin is connected to the clock signal. Additionally, you need to configure the device's registers to select the DSI mode and set the desired data rate.
  • The power consumption of the SN65DSI84TPAPRQ1 depends on the operating mode and data rate. In general, the device consumes around 150 mW of power when operating at a data rate of 1.5 Gbps. However, this value can vary depending on the specific application and operating conditions.
  • To troubleshoot issues with the SN65DSI84TPAPRQ1, start by checking the device's power supply and clock signals. Ensure that the device is properly configured and that the input signals are within the specified voltage and frequency ranges. Use oscilloscopes or logic analyzers to monitor the device's output signals and identify any errors or anomalies.
  • The SN65DSI84TPAPRQ1 is specifically designed for MIPI DSI and CSI-2 interfaces and is not compatible with other interfaces such as HDMI or DisplayPort. However, Texas Instruments offers other products that support these interfaces, such as the TIDA-00226 HDMI-to-MIPI DSI bridge.
