SN65DSI86IPAPRQ1 - Texas Instruments

Description: Automotive MIPI® DSI BRIDGE TO eDP

Download SN65DSI86IPAPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SN65DSI86IPAPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

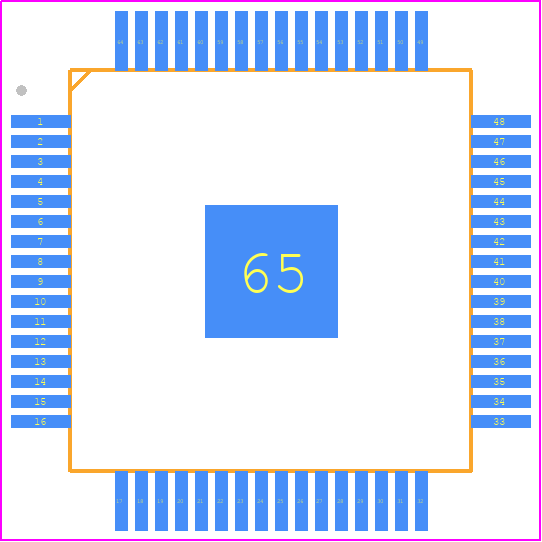

SN65DSI86IPAPRQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PAP0064Q_1
click to zoom
3D Models
SN65DSI86IPAPRQ1 - Texas Instruments - 3D model - Quad Flat Packages - PAP0064Q_1
click to zoom

SN65DSI86IPAPRQ1 Details

  • Manufacturer Part Number:

    SN65DSI86IPAPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    12000000 Mbps

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

SN65DSI86IPAPRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65DSI86IPAPRQ1 is approximately 3 meters (10 feet) for a single lane configuration and 1.5 meters (5 feet) for a dual-lane configuration, assuming a good quality cable and a well-designed PCB.
  • The SN65DSI86IPAPRQ1 can be configured for MIPI DSI or MIPI CSI-2 interface by setting the appropriate registers and pins. Refer to the datasheet and application notes for specific configuration details.
  • The power consumption of the SN65DSI86IPAPRQ1 depends on the operating frequency, data rate, and other factors. Typically, the power consumption is around 150-200 mW for a single lane configuration and 300-400 mW for a dual-lane configuration.
  • To troubleshoot issues with the SN65DSI86IPAPRQ1, check the power supply, clock signals, and data signals. Use oscilloscopes and logic analyzers to verify signal integrity and timing. Also, refer to the datasheet and application notes for troubleshooting guidelines.
  • Yes, the SN65DSI86IPAPRQ1 is designed to be compatible with other MIPI-compliant devices, including image sensors, displays, and application processors.
