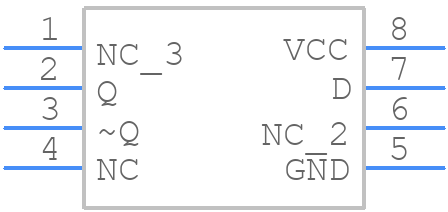

SN65ELT20DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65ELT20DR - Texas Instruments PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
SN65ELT20DR - Texas Instruments - 3D model - Other - SOIC127P600X175-8N
click to zoom

SN65ELT20DR Details

  • Manufacturer Part Number:

    SN65ELT20DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    65ELT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    16 mA

  • Prop. Delay@Nom-Sup:

    1.25 ns

  • Propagation Delay (tpd):

    1.25 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.7 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65ELT20DR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65ELT20DR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 1 Gbps.
  • To ensure signal integrity with the SN65ELT20DR, it is recommended to follow proper PCB layout and design guidelines, such as using differential pairs, minimizing trace lengths, and using signal shielding. Additionally, the device's built-in features such as equalization and de-emphasis can be used to improve signal quality.
  • Yes, the SN65ELT20DR is suitable for use in industrial and automotive applications due to its operating temperature range of -40°C to 125°C and its compliance with various industry standards such as IEC 61000-4-2 and ISO 7637.
  • The SN65ELT20DR can be configured for different data rates by adjusting the settings of the device's internal registers. The device supports data rates from 10 Mbps to 3.125 Gbps, and the specific configuration will depend on the desired data rate and application requirements.
  • The power consumption of the SN65ELT20DR varies depending on the operating mode and data rate. However, the typical power consumption is around 150 mW at 1 Gbps and 300 mW at 3.125 Gbps.
