SN65HVD1040AQDRQ1 - Texas Instruments

Description: Automotive Catalog EMC-Optimized CAN Transceiver

Download SN65HVD1040AQDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

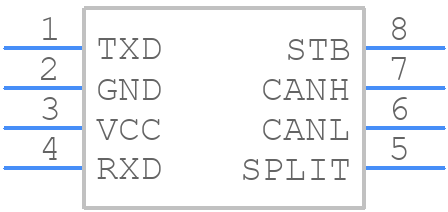

SN65HVD1040AQDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVD1040AQDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - +soic d
click to zoom
3D Models
SN65HVD1040AQDRQ1 - Texas Instruments - 3D model - Small Outline Packages - +soic d
click to zoom

SN65HVD1040AQDRQ1 Details

  • Manufacturer Part Number:

    SN65HVD1040AQDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.07 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65HVD1040AQDRQ1 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD1040AQDRQ1 is approximately 100 meters, depending on the specific application and cable characteristics.
  • To ensure signal integrity and minimize EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and minimizing trace lengths. Additionally, use common-mode chokes or ferrite beads to filter out high-frequency noise.
  • The recommended termination scheme for the SN65HVD1040AQDRQ1 is a 120-ohm differential termination resistor at the receiver end, with a 50-ohm single-ended termination resistor at the transmitter end.
  • To handle hot swapping or hot plugging, use a hot-swap controller or a power-switching device to control the power supply to the SN65HVD1040AQDRQ1. This ensures that the device is powered down before the connection is made or broken.
  • The SN65HVD1040AQDRQ1 has a maximum junction temperature of 150°C. Ensure proper heat sinking and thermal management to prevent overheating, especially in high-temperature or high-power applications.
