SN65HVD232QD - Texas Instruments

Description: Texas Instruments SN65HVD232QD, CAN Transceiver 1MBps 1-channel ISO 11898, 8-Pin SOIC

Download SN65HVD232QD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

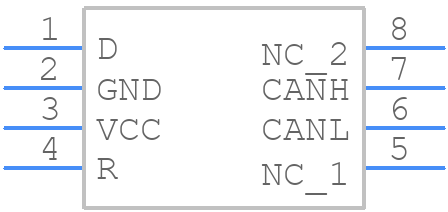

SN65HVD232QD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVD232QD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G8)
click to zoom
3D Models
SN65HVD232QD - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G8)
click to zoom

SN65HVD232QD Details

  • Manufacturer Part Number:

    SN65HVD232QD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Mexico, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.017 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65HVD232QD Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD232QD is dependent on the baud rate and the type of cable used. As a general guideline, the maximum cable length is around 100 meters at 9600 bps and 10 meters at 115200 bps.
  • To ensure EMC with the SN65HVD232QD, follow proper PCB layout and design guidelines, use a common-mode choke or ferrite bead on the RS-232 lines, and ensure proper grounding and shielding of the device and cables.
  • The maximum operating temperature range for the SN65HVD232QD is -40°C to 85°C. However, the device can be operated at temperatures above 85°C with reduced reliability and lifespan.
  • Yes, the SN65HVD232QD can be used in a multi-point or multi-drop configuration, but it requires proper termination and biasing of the RS-232 lines to prevent signal reflections and ensure reliable data transmission.
  • To handle ESD protection for the SN65HVD232QD, follow proper handling and storage procedures, use ESD-protective packaging and materials, and consider adding external ESD protection devices or circuits to the design.
