The maximum cable length supported by the SN65HVD253DR depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 1 Mbps. For longer cable lengths or higher data rates, the device may require additional circuitry or signal conditioning.
To ensure reliable communication over long distances with the SN65HVD253DR, it is recommended to use a twisted-pair cable, maintain a consistent impedance throughout the transmission line, and use proper termination and shielding techniques. Additionally, the device's built-in slew-rate control and common-mode rejection can help to improve signal integrity and reduce electromagnetic interference (EMI).
Yes, the SN65HVD253DR can be used in a multi-point or multi-drop configuration. The device supports up to 32 nodes on a single bus, making it suitable for applications that require multiple devices to communicate with each other. However, it is essential to ensure that the total bus capacitance does not exceed the recommended maximum value to maintain signal integrity.
The typical power consumption of the SN65HVD253DR depends on the operating mode and the data rate. In normal operation, the device typically consumes around 10-15 mA. However, in standby mode, the power consumption can be as low as 10-20 μA. It is recommended to consult the datasheet for more detailed power consumption information.
To troubleshoot issues with the SN65HVD253DR, it is recommended to start by checking the device's power supply, clock signal, and data transmission lines. Use an oscilloscope to verify the signal integrity and check for any signs of signal degradation or distortion. Additionally, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN65HVD253DR Overview

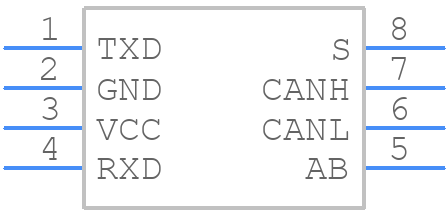

Use the download button to access the SN65HVD253DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H,
or try a keyword search, such as Network Interfaces
