SN65HVD256DR - Texas Instruments

Description: CAN Transceiver With Fast Loop Times for Highly Loaded Networks

Download SN65HVD256DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

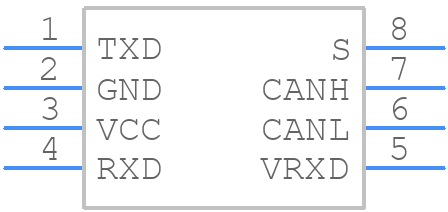

SN65HVD256DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVD256DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D008A
click to zoom
3D Models
SN65HVD256DR - Texas Instruments - 3D model - Small Outline Packages - D008A
click to zoom

SN65HVD256DR Details

  • Manufacturer Part Number:

    SN65HVD256DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

SN65HVD256DR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD256DR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 100 Mbps.
  • To ensure signal integrity and minimize EMI, it is recommended to use a shielded cable, keep the cable length as short as possible, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, proper PCB layout and grounding techniques should be followed to minimize radiation and coupling.
  • The recommended termination scheme for the SN65HVD256DR is a 120-ohm differential termination resistor at the receiving end of the cable. This helps to match the impedance of the cable and reduce reflections.
  • Yes, the SN65HVD256DR can be used in a multi-drop configuration. However, it is recommended to use a repeater or a hub to regenerate the signal and ensure reliable communication between devices.
  • The maximum operating temperature range for the SN65HVD256DR is -40°C to 85°C. However, it is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN65HVD256DR Overview

Use the download button to access the SN65HVD256DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
