The maximum cable length supported by the SN65HVD257DR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 100 Mbps.
To ensure signal integrity and minimize EMI, it is recommended to use a shielded cable, keep the transmitter and receiver pairs close together, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
For optimal performance, it is recommended to follow a differential pair routing scheme, keeping the transmitter and receiver pairs close together and avoiding vias and sharp corners. Additionally, it is recommended to use a solid ground plane and to keep the device away from noise sources.
To troubleshoot issues with the SN65HVD257DR, it is recommended to use a logic analyzer or oscilloscope to monitor the signal quality and identify any errors. Additionally, checking the device's power supply, clock signal, and termination resistors can help identify the root cause of the issue.
The SN65HVD257DR is rated for operation in industrial temperature ranges (-40°C to 85°C) and can be used in harsh environments. However, it is recommended to follow proper PCB design and layout guidelines to ensure reliable operation in these conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65HVD257DR Overview

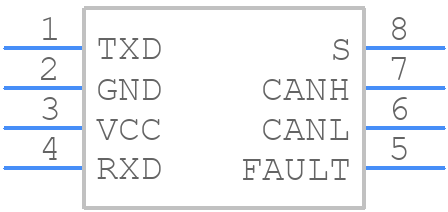

Use the download button to access the SN65HVD257DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
