The maximum cable length supported by the SN65HVD265D depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 1 Mbps. For longer cable lengths or higher data rates, the device may require additional external components or specialized cables.
To ensure reliable communication over long distances with the SN65HVD265D, it is recommended to use a twisted-pair cable with a shield, and to follow proper cable termination and grounding techniques. Additionally, the device's transmit and receive lines should be properly matched to the cable impedance, and the device's common-mode choke should be used to filter out electromagnetic interference (EMI).
Yes, the SN65HVD265D can be used in a multi-point or multi-drop configuration. The device supports up to 32 nodes on a single bus, and each node can be configured as a transmitter, receiver, or repeater. However, the device's bus capacitance and termination requirements must be carefully considered to ensure reliable operation in these configurations.
The SN65HVD265D has built-in features to handle EMI and EMS, including a common-mode choke and a shielded pinout. Additionally, the device's differential signaling and twisted-pair cable requirements help to reduce EMI and EMS. However, it is still important to follow proper PCB layout and design practices, and to use additional EMI filtering components if necessary, to ensure reliable operation in electrically noisy environments.
The typical power consumption of the SN65HVD265D depends on the specific application and operating conditions. However, according to the datasheet, the device's typical power consumption is around 15 mA at a supply voltage of 5 V and a data rate of 1 Mbps. The device also has a low-power shutdown mode that can reduce power consumption to around 1 μA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65HVD265D Overview

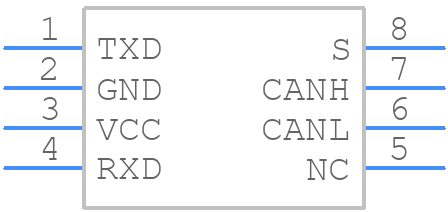

Use the download button to access the SN65HVD265D schematic symbol, PCB footprint, and 3D model.
