SN65HVD266DR - Texas Instruments

Description: 'Turbo' CAN Transceiver for CAN FD (Flexible Data Rate) with I/O Level Shifting

Download SN65HVD266DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

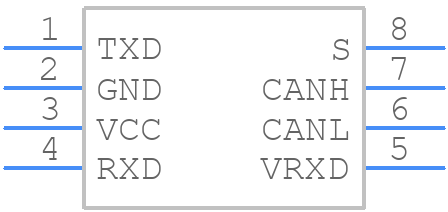

SN65HVD266DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVD266DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
SN65HVD266DR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

SN65HVD266DR Details

  • Manufacturer Part Number:

    SN65HVD266DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65HVD266DR Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD266DR is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 1 Mbps.
  • To ensure signal integrity and minimize EMI, it is recommended to use a shielded cable, keep the cable length as short as possible, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, proper PCB layout and grounding techniques should be followed to minimize radiation and coupling.
  • The recommended termination scheme for the SN65HVD266DR is a 120-ohm differential termination resistor at the receiving end of the bus. This helps to match the impedance of the bus and minimize reflections.
  • Yes, the SN65HVD266DR can be used in a multi-point configuration. However, it is recommended to use a repeater or a hub to ensure that the signal is properly amplified and repeated to each node in the network.
