SN65HVD35DRG4 - Texas Instruments

Description: RS-422/RS-485 Interface IC 3V Full-Dplx Driver and Receiver

Download SN65HVD35DRG4 Model

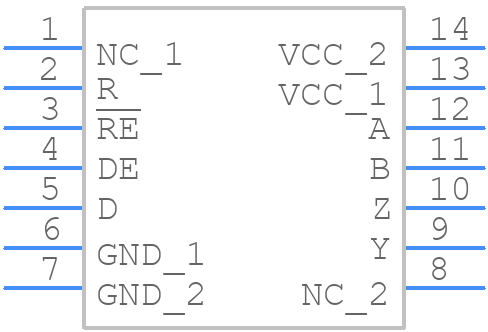

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN65HVD35DRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
SN65HVD35DRG4 - Texas Instruments  - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

SN65HVD35DRG4 Details

  • Manufacturer Part Number:

    SN65HVD35DRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    SIGNALING RATE 1MBPS

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.0001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422-B; TIA-422-B; EIA-485-A; TIA-485-A; V.11

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.06 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    70 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    305 ns

  • Width:

    3.9 mm

SN65HVD35DRG4 Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD35DRG4 depends on the baud rate and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters at lower baud rates (e.g., 9600 bps) and up to 10 meters at higher baud rates (e.g., 115200 bps). However, it's recommended to consult the application note 'TIA/EIA-485 (RS-485) Cable Length and Bit Rate' (SLAA701) for more detailed information.
  • To ensure reliable communication in noisy environments, it's essential to follow proper PCB layout and design practices, such as using a ground plane, separating the RS-485 bus from other signals, and using shielding or twisted-pair cables. Additionally, consider using a common-mode choke or a ferrite bead to filter out electromagnetic interference (EMI). It's also recommended to use a termination resistor at the end of the bus to prevent signal reflections.
  • The main difference between the SN65HVD35DRG4 and the SN65HVD72DRG4 is the number of receivers and transmitters. The SN65HVD35DRG4 has one transmitter and one receiver, while the SN65HVD72DRG4 has two transmitters and two receivers. The SN65HVD72DRG4 is suitable for applications that require multiple transmitters and receivers, such as in a repeater or hub configuration.
  • Yes, the SN65HVD35DRG4 can be used in a half-duplex configuration. To do so, connect the DE (driver enable) pin to the RE (receiver enable) pin, and use a single twisted-pair cable for both transmission and reception. This configuration is suitable for applications where data is transmitted in one direction at a time.
  • The recommended termination scheme for the SN65HVD35DRG4 is to use a 120-ohm termination resistor at the end of the bus, as close to the last receiver as possible. This helps to prevent signal reflections and ensures reliable communication. Additionally, consider using a biasing network to maintain a stable common-mode voltage on the bus.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN65HVD35DRG4 Overview

Use the download button to access the SN65HVD35DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H, or try a keyword search, such as Line Driver or Receivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
