A good PCB layout for the SN65HVDA1040AQDRQ1 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the SN65HVDA1040AQDRQ1 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
The SN65HVDA1040AQDRQ1 is designed to be immune to electromagnetic interference (EMI), but it's still important to follow proper EMI mitigation practices, such as using shielding, filtering, and grounding techniques to minimize the impact of EMI on the device.
The SN65HVDA1040AQDRQ1 is designed to operate with a 3.3V or 5V supply voltage, but it's possible to use it with a different voltage supply with some limitations. However, it's essential to ensure that the voltage supply is within the recommended operating range and that the device is properly biased to avoid damage or malfunction.
To troubleshoot issues with the SN65HVDA1040AQDRQ1, start by checking the power supply voltage, ensuring that it's within the recommended operating range. Then, verify that the input and output signals are within the specified limits. If the issue persists, use an oscilloscope to analyze the signal waveforms and identify any anomalies.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN65HVDA1040AQDRQ1 Overview

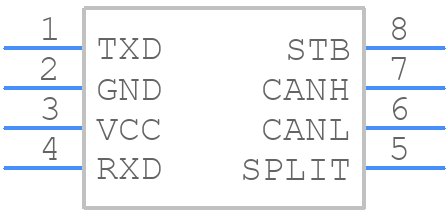

Use the download button to access the SN65HVDA1040AQDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H,
or try a keyword search, such as Network Interfaces
