SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
8.7 mA
Supply Voltage-Max:
34 V
Supply Voltage-Min:
10 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
3 V
Supply Voltage1-Min:
10 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
10 ns
Width:
4.4 mm
SN65HVS882PWPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SN65HVS882PWPG4 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour on the PCB can be used to dissipate heat. Additionally, the device's thermal resistance (RθJA) should be considered when designing the system's thermal management.
Although the datasheet specifies an input voltage range of 3.3V to 5V, it's recommended to operate the device within a narrower range of 3.3V ± 10% to ensure optimal performance and minimize power consumption.
To ensure EMC, follow the guidelines in the application note SLVAE04, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a common-mode choke or a ferrite bead to filter out high-frequency noise.
The maximum cable length supported by the SN65HVS882PWPG4 depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 100 Mbps. For longer cable lengths, repeaters or active cables may be required.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65HVS882PWPG4 Overview

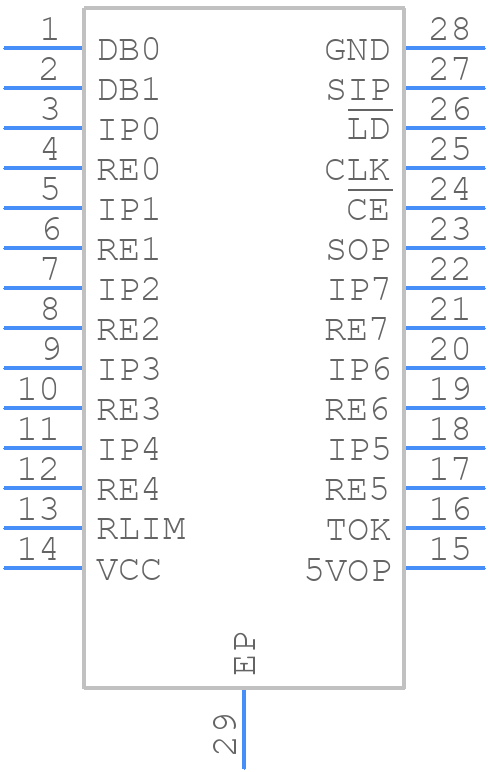

Use the download button to access the SN65HVS882PWPG4 schematic symbol, PCB footprint, and 3D model.
