SN65LBC175DG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - SN65LBC175DG4 - Differential Line Receiver RS422/RS423/RS485, 4 Drivers, 4.75V-5.25V supply, SOIC-16

Download SN65LBC175DG4 Model

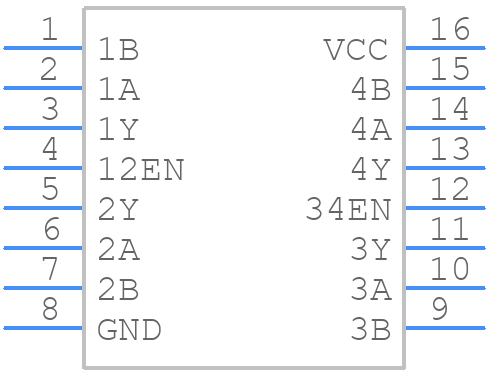

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN65LBC175DG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
SN65LBC175DG4 - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

SN65LBC175DG4 Details

  • Manufacturer Part Number:

    SN65LBC175DG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    Mexico, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Differential Output:

    NO

  • High Level Input Current-Max:

    20 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    V.11; EIA-422-A; EIA-423-A; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    3 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.016 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    30 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

SN65LBC175DG4 Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for RS-485 is around 4000 feet (1219 meters) at a data rate of 10 Mbps. However, it's recommended to consult the application notes and perform signal integrity analysis to determine the maximum cable length for a specific design.
  • To prevent signal reflections, it's recommended to use a termination resistor at the end of the RS-485 bus. The value of the termination resistor should be equal to the characteristic impedance of the cable, which is typically around 120 ohms for RS-485 cables. Additionally, it's recommended to use a biasing network to maintain a stable common-mode voltage on the bus.
  • Yes, the SN65LBC175DG4 can be used in a half-duplex configuration. To do this, the DE (driver enable) pin should be connected to the RE (receiver enable) pin, and the transmitter and receiver should be enabled and disabled accordingly. However, it's recommended to consult the application notes and perform signal integrity analysis to ensure that the half-duplex configuration meets the specific requirements of the application.
  • The maximum data rate that can be achieved with the SN65LBC175DG4 is 10 Mbps. However, the actual data rate may be limited by the specific application, cable length, and signal integrity. It's recommended to consult the application notes and perform signal integrity analysis to determine the maximum data rate for a specific design.
  • To protect the SN65LBC175DG4 from ESD and surge events, it's recommended to use TVS (transient voltage suppression) diodes or other ESD protection devices on the RS-485 bus. Additionally, it's recommended to follow proper PCB layout and design practices to minimize the risk of ESD and surge damage.
