SN65LBC175DWR - Texas Instruments

Description: Quadruple Low-Power Differential Line Receiver

Download SN65LBC175DWR Model
Schematic
symbols

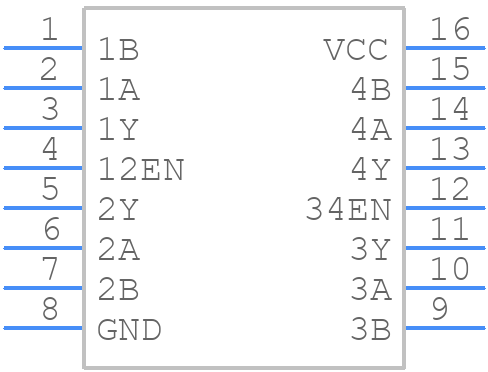

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN65LBC175DWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
SN65LBC175DWR - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

SN65LBC175DWR Details

  • Manufacturer Part Number:

    SN65LBC175DWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    V.11; EIA-422-A; EIA-423-A; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.285 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    3 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.008 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    30 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.25 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

SN65LBC175DWR Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, the SN65LBC175DWR can support cable lengths up to 100 meters at a data rate of 100 Mbps. However, it's recommended to consult the TI application notes and perform signal integrity analysis to determine the maximum cable length for a specific design.
  • To ensure signal integrity with the SN65LBC175DWR, it's recommended to follow proper PCB layout and design guidelines, such as using differential pairs, minimizing trace length and impedance mismatches, and using termination resistors. Additionally, it's recommended to use a common-mode choke or a transformer to reduce electromagnetic interference (EMI).
  • The power consumption of the SN65LBC175DWR depends on the operating frequency and the load conditions. According to the datasheet, the typical power consumption is around 150 mW at a data rate of 100 Mbps. However, it's recommended to consult the datasheet and perform power analysis to determine the exact power consumption for a specific design.
  • Yes, the SN65LBC175DWR can be used in a multi-point bus configuration. The device supports multiple transmitters and receivers on the same bus, and it's designed to handle the reflections and signal degradation that occur in multi-point bus configurations.
  • The SN65LBC175DWR has an operating temperature range of -40°C to 85°C. However, it's recommended to consult the datasheet and perform thermal analysis to determine the maximum operating temperature range for a specific design.
