The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters at a frequency of 100 MHz. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLWC073) for more detailed information on cable length and signal integrity.
To ensure signal integrity and minimize EMI, it's essential to follow proper PCB layout and design guidelines, such as using differential pairs, minimizing trace length and impedance mismatch, and using shielding and grounding techniques. Additionally, the use of common-mode chokes and EMI filters can help reduce EMI emissions.
The power consumption of the SN65LVDS049PWG4 depends on the operating frequency and the load capacitance. According to the datasheet, the typical power consumption is around 120 mW at 100 MHz. To reduce power consumption, consider using a lower operating frequency, reducing the load capacitance, or using a lower-power mode (e.g., standby mode) when the device is not in use.
Yes, the SN65LVDS049PWG4 can operate with a 3.3V power supply. However, it's essential to ensure that the input voltage is within the recommended operating range of 3.0V to 3.6V, and that the device is properly decoupled to minimize noise and voltage droop.
To troubleshoot issues with the SN65LVDS049PWG4, start by verifying the device's operating conditions, such as power supply voltage, temperature, and signal frequency. Use oscilloscopes and logic analyzers to monitor the signal waveforms and data transmission. Check for signal integrity issues, such as ringing, overshoot, or undershoot, and ensure that the device is properly terminated and matched to the transmission line.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS049PWG4 Overview

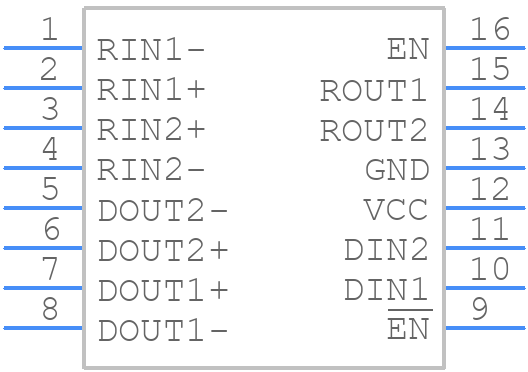

Use the download button to access the SN65LVDS049PWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
