The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLWC073) for more detailed information on cable length and signal integrity.
No, the SN65LVDS051PWR is a unidirectional LVDS transmitter, and it's not designed for bidirectional data transmission. If bidirectional transmission is required, a separate LVDS receiver (such as the SN65LVDS048PWR) would be needed.
The power consumption of the SN65LVDS051PWR depends on the operating frequency and the load conditions. According to the datasheet, the typical power consumption is around 15mA at 3.3V supply voltage and 100MHz operating frequency. However, it's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
The SN65LVDS051PWR is a standard LVDS transmitter, and it's not compatible with other LVDS standards like M-LVDS or BLVDS without additional circuitry or modifications. M-LVDS and BLVDS have different voltage levels and signal characteristics, so a separate transmitter or a custom design would be required for compatibility.
The SN65LVDS051PWR has an operating temperature range of -40°C to 85°C. While it can be used in high-temperature applications, it's essential to ensure that the device is properly cooled and that the operating temperature does not exceed the recommended maximum. Additionally, the device's performance and reliability may be affected at high temperatures, so it's recommended to consult the datasheet and perform thermal analysis for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS051PWR Overview

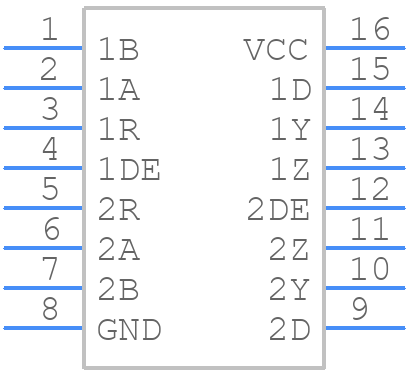

Use the download button to access the SN65LVDS051PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
