SN65LVDS104PWG4 - Texas Instruments

Description: Clock Drivers & Distribution 1:4 LVDS Clock Fanout Buffer

Download SN65LVDS104PWG4 Model

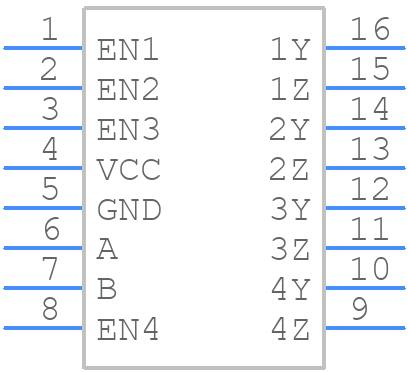

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN65LVDS104PWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
SN65LVDS104PWG4 - Texas Instruments  - 3D model - Small Outline Packages - PW0016A
click to zoom

SN65LVDS104PWG4 Details

  • Manufacturer Part Number:

    SN65LVDS104PWG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.00002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    4.2 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    4.2 ns

  • Width:

    4.4 mm

SN65LVDS104PWG4 Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters at 100 Mbps. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLWC073) for more detailed information on cable length and signal integrity.
  • The SN65LVDS104PWG4 has internal 100-ohm differential termination resistors, so no external termination resistors are required. However, it's recommended to add a 0.1-uF capacitor between the VCC and GND pins to filter the power supply and reduce noise.
  • The power consumption of the SN65LVDS104PWG4 depends on the operating frequency and the load capacitance. According to the datasheet, the typical power consumption is around 15 mA at 100 Mbps with a 100-pF load capacitance. However, it's recommended to consult the datasheet and the TI application notes for more detailed information on power consumption and power management.
  • Yes, the SN65LVDS104PWG4 is capable of supporting high-speed data transmission up to 400 Mbps. However, it's recommended to consult the datasheet and the TI application notes for more detailed information on signal integrity, PCB layout, and component selection for high-speed applications.
  • To ensure signal integrity and reduce EMI, it's recommended to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielded cables. Additionally, it's recommended to add EMI filters and shielding to the design, and to consult the TI application notes and the datasheet for more detailed information on signal integrity and EMI reduction.
