SN65LVDS1050PW - Texas Instruments

Description: HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

Download SN65LVDS1050PW Model

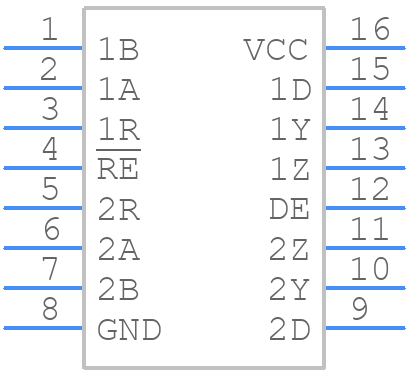

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN65LVDS1050PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G16)
click to zoom
3D Models
SN65LVDS1050PW - Texas Instruments  - 3D model - Small Outline Packages - PW (R-PDSO-G16)
click to zoom

SN65LVDS1050PW Details

  • Manufacturer Part Number:

    SN65LVDS1050PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.247 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.008 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    5.2 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    2.4 V

  • Supply Voltage1-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    3 ns

  • Width:

    4.4 mm

SN65LVDS1050PW Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters at a frequency of 100 MHz. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLWC073) for more detailed information on cable length and signal integrity.
  • To ensure signal integrity and minimize EMI, it's essential to follow proper PCB layout and design guidelines. This includes using a solid ground plane, minimizing trace lengths, and using shielding or twisted pairs for the LVDS signals. Additionally, the use of a common-mode choke or a ferrite bead can help to reduce EMI. TI provides a detailed application note 'LVDS Owner's Manual' (SLWC073) that covers these topics in more detail.
  • The recommended termination scheme for the SN65LVDS1050PW is a 100-ohm differential termination resistor at the receiving end of the LVDS signal. This helps to match the impedance of the transmission line and reduce signal reflections. TI provides more information on termination schemes in the datasheet and application notes.
  • While the SN65LVDS1050PW is primarily designed for LVDS applications, it can be used for other differential signaling standards like RS-422 or RS-485 with some limitations. However, the device's performance and signal integrity may not be optimal for these applications. It's recommended to consult the datasheet and application notes to determine the feasibility of using the SN65LVDS1050PW for non-LVDS applications.
  • The SN65LVDS1050PW is not designed to handle hot swapping or hot plugging. It's recommended to ensure that the power supply is stable and the device is properly initialized before connecting or disconnecting the LVDS signals. TI provides guidelines for power sequencing and hot plugging in the datasheet and application notes.
