The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters at a frequency of 100 MHz. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' for more detailed information on cable length and signal integrity.
The SN65LVDS122DR requires a 100-ohm differential termination at the receiver end. A 100-ohm resistor should be connected between the positive and negative lines of each LVDS pair. Additionally, it's recommended to add a 50-ohm series resistor at the transmitter end to match the impedance of the transmission line.
The power consumption of the SN65LVDS122DR depends on the operating frequency and the output load. According to the datasheet, the typical power consumption is around 30-40 mA at a frequency of 100 MHz. However, it's recommended to consult the datasheet and perform power calculations based on the specific application requirements.
Yes, the SN65LVDS122DR is capable of transmitting data at speeds above 100 MHz. However, it's recommended to consult the datasheet and perform signal integrity analysis to ensure that the device can meet the specific application requirements. Additionally, it's recommended to use a high-speed PCB design and layout to minimize signal degradation and ensure reliable data transmission.
To ensure EMC with the SN65LVDS122DR, it's recommended to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal loops, and using shielding and filtering techniques. Additionally, it's recommended to consult the TI application note 'EMC Guidelines for LVDS' for more detailed information on EMC considerations for LVDS devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS122DR Overview

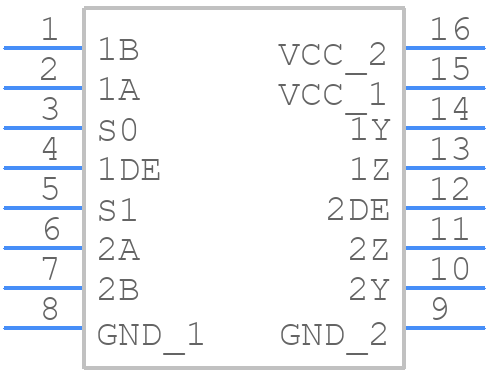

Use the download button to access the SN65LVDS122DR schematic symbol, PCB footprint, and 3D model.
