SN65LVDS151DA - Texas Instruments

Description: MuxIt ™ Serializer-Transmitter

Download SN65LVDS151DA Model

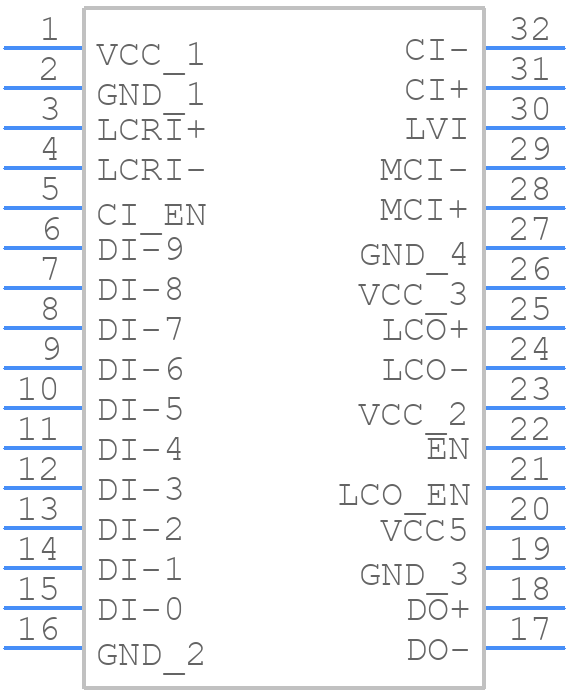

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN65LVDS151DA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DA (R-PDSO-G32)
click to zoom
3D Models
SN65LVDS151DA - Texas Instruments  - 3D model - Small Outline Packages - DA (R-PDSO-G32)
click to zoom

SN65LVDS151DA Details

  • Manufacturer Part Number:

    SN65LVDS151DA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-32

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644-A; TIA-644-A

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.247 V

  • Output Characteristics:

    TOTEM-POLE

  • Output Low Current-Max:

    0.00002 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    65 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    5.8 ns

  • Width:

    6.2 mm

SN65LVDS151DA Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters at a frequency of 100 MHz. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLWC073) for more detailed information on cable length and signal integrity.
  • The SN65LVDS151DA requires a 100-ohm differential termination at the receiver end. A 100-ohm resistor can be used to terminate the LVDS lines. Additionally, it's recommended to use a series resistor (Rs) at the transmitter end to match the impedance of the transmission line and reduce reflections.
  • The power-up sequence for the SN65LVDS151DA is not explicitly stated in the datasheet. However, it's recommended to power up the VCC supply before the input signals to ensure proper device operation. A power-up sequence of VCC, then input signals, and finally the output enable (OE) signal is recommended.
  • Yes, the SN65LVDS151DA can operate with a 3.3V supply voltage. However, the device is specified to operate from 2.5V to 3.6V, and the output voltage swing may be reduced at lower supply voltages. It's recommended to consult the datasheet and application notes for more information on operating the device at 3.3V.
  • Skew and jitter can be handled by using a clock signal that is transmitted along with the data signals, and using a PLL or clock recovery circuit to regenerate the clock signal at the receiver end. Additionally, using a differential clock signal and a common-mode filter can help to reduce skew and jitter.
