SN65LVDS22PW - Texas Instruments

Description: Texas Instruments SN65LVDS22PW, LVDS Transceiver, 3 → 3.6 V, 16-Pin, TSSOP

Download SN65LVDS22PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

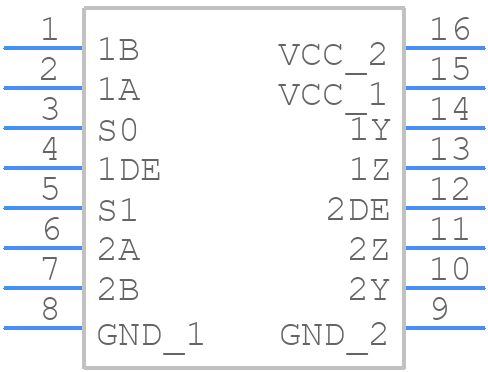

SN65LVDS22PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65LVDS22PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A TSSOP
click to zoom
3D Models
SN65LVDS22PW - Texas Instruments - 3D model - Small Outline Packages - PW0016A TSSOP
click to zoom

SN65LVDS22PW Details

  • Manufacturer Part Number:

    SN65LVDS22PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.247 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.00001 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    6 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    6 ns

  • Width:

    4.4 mm

SN65LVDS22PW Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLWC073) for more detailed information on cable length and signal integrity.
  • While the SN65LVDS22PW is designed specifically for LVDS applications, it can be used for other differential signaling standards like RS-422 or RS-485 with some limitations. However, the device's common-mode voltage range and differential output voltage may not be compatible with all RS-422 or RS-485 systems. It's recommended to consult the datasheet and application notes to determine if the SN65LVDS22PW can be used in a specific non-LVDS application.
  • Proper termination is critical for maintaining signal integrity in LVDS systems. The SN65LVDS22PW datasheet recommends using a 100-ohm differential termination resistor at the receiving end of the cable. Additionally, it's recommended to use a 50-ohm to 100-ohm series termination resistor at the transmitting end to reduce reflections and improve signal quality.
  • The SN65LVDS22PW is capable of supporting data rates up to 660 Mbps. However, the actual data rate that can be achieved depends on the specific application, cable length, and signal quality. It's recommended to consult the datasheet and application notes for more detailed information on data rate and signal integrity.
  • The SN65LVDS22PW is specified to operate over a temperature range of -40°C to 85°C. However, it's recommended to consult the datasheet and application notes for more detailed information on thermal considerations and potential derating requirements for high-temperature applications.
