The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters. However, it's recommended to consult the TI application notes and perform signal integrity simulations to determine the optimal cable length for a specific design.
The SN65LVDS315RGET has internal 100-ohm differential termination resistors, so no external termination is required. However, it's recommended to add external AC-coupling capacitors (typically 100 nF) to the LVDS lines to filter out any common-mode noise and ensure signal integrity.
The power consumption of the SN65LVDS315RGET depends on the operating frequency and the load conditions. According to the datasheet, the typical power consumption is around 150 mW at 100 MHz. However, it's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
Yes, the SN65LVDS315RGET is designed for high-speed data transmission applications up to 1.5 Gbps. It has a low propagation delay and a high common-mode rejection ratio, making it suitable for high-speed data transmission over long distances.
To ensure signal integrity with the SN65LVDS315RGET, it's recommended to follow proper PCB design guidelines, such as using differential pairs, minimizing signal routing, and adding AC-coupling capacitors to the LVDS lines. Additionally, it's recommended to perform signal integrity simulations and testing to ensure that the signal quality meets the application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS315RGET Overview

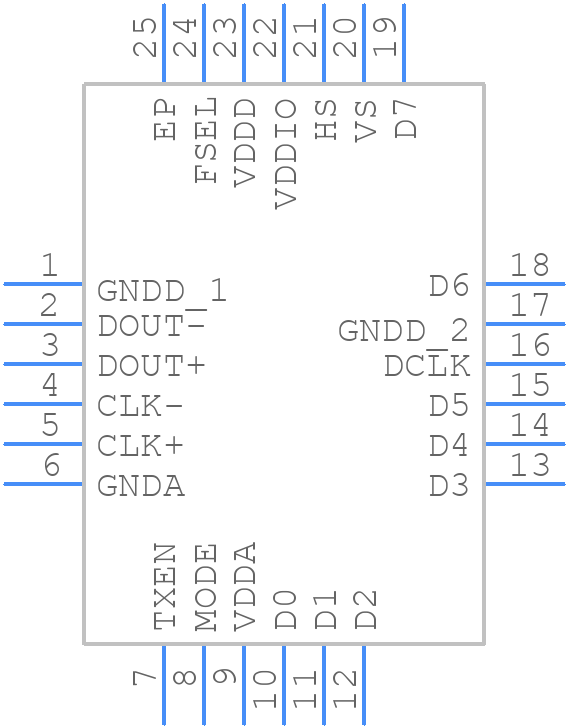

Use the download button to access the SN65LVDS315RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
