SN65LVDS33DG4 - Texas Instruments

Description: LVDS Receiver 400Mbps 16-Pin SOIC Tube

Download SN65LVDS33DG4 Model

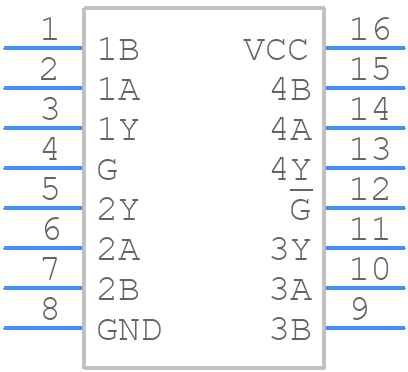

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SN65LVDS33DG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
SN65LVDS33DG4 - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

SN65LVDS33DG4 Details

  • Manufacturer Part Number:

    SN65LVDS33DG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Level Input Current-Max:

    0.00001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2 V

  • Output Characteristics:

    TOTEM-POLE

  • Output Low Current-Max:

    0.004 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    6 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65LVDS33DG4 Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters at a frequency of 100 MHz. However, it's recommended to consult the TI application note 'LVDS Owner's Manual' (SLWC073) for more detailed information on cable length and signal integrity.
  • The SN65LVDS33DG4 requires a 100-ohm differential termination at the receiver end. A 100-ohm resistor can be used to terminate the LVDS lines. It's also recommended to add a 50-ohm series resistor at the transmitter end to match the impedance of the transmission line.
  • The power consumption of the SN65LVDS33DG4 depends on the operating frequency and the supply voltage. According to the datasheet, the typical power consumption is around 15 mA at a supply voltage of 3.3 V and an operating frequency of 100 MHz. However, it's recommended to consult the datasheet for more detailed information on power consumption and to perform power calculations based on the specific application.
  • No, the SN65LVDS33DG4 is designed to operate with a supply voltage of 3.3 V or 2.5 V. Using a 5-V supply voltage may damage the device or affect its performance. It's recommended to use a voltage regulator or a voltage translator to step down the supply voltage to the recommended range.
  • To ensure signal integrity with the SN65LVDS33DG4, it's recommended to follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using a consistent impedance throughout the transmission line. Additionally, it's recommended to use a signal integrity analysis tool to simulate the signal transmission and identify potential issues.
