The maximum cable length supported by the SN65LVDS9637DGNG4 is dependent on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends a maximum cable length of 10 meters for LVDS signals.
To ensure signal integrity with the SN65LVDS9637DGNG4, it is recommended to follow proper PCB design and layout guidelines, such as using differential pairs, minimizing trace length and impedance mismatches, and using termination resistors as needed. Additionally, the use of a common-mode filter or a shielded cable can help to reduce electromagnetic interference (EMI).
Yes, the SN65LVDS9637DGNG4 can be used in a multi-point LVDS bus configuration. However, it is recommended to follow the guidelines outlined in the Texas Instruments application note 'Multi-Point LVDS Bus Design Guide' (SLVA466) to ensure proper bus operation and signal integrity.
The recommended power-up sequence for the SN65LVDS9637DGNG4 is to power up the VCC supply before the VCCIO supply. This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
To troubleshoot issues with the SN65LVDS9637DGNG4, it is recommended to follow a systematic approach, such as checking the power supply voltages, signal integrity, and device configuration. Texas Instruments also provides a range of tools and resources, such as the TI Logic Analyzer and the SN65LVDS9637DGNG4 evaluation module, to help debug and troubleshoot issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS9637DGNG4 Overview

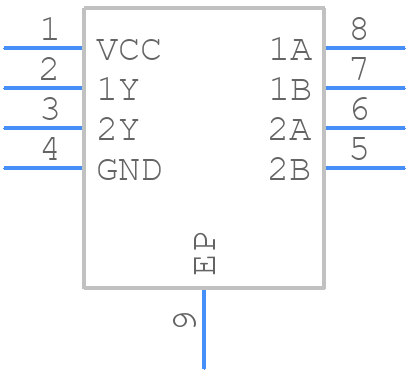

Use the download button to access the SN65LVDS9637DGNG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
