SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
35 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
3.6 V
Supply Voltage1-Min:
3 V
Supply Voltage1-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
2.5 ns
Width:
3 mm
SN65LVDS9638DGN Frequently Asked Questions (FAQs)
The maximum cable length supported by the SN65LVDS9638DGN is approximately 10 meters (33 feet) at a data rate of 1.485 Gbps. However, this length can vary depending on the specific application, cable quality, and environmental conditions.
To ensure signal integrity with the SN65LVDS9638DGN, it is recommended to follow proper PCB design guidelines, use high-quality cables and connectors, and implement proper termination and filtering techniques. Additionally, the device's built-in features such as pre-emphasis and de-emphasis can be used to improve signal quality.
Yes, the SN65LVDS9638DGN can be used in a multi-point configuration, but it requires careful consideration of the system design and signal routing to ensure that the device can handle the increased loading and signal degradation.
The power consumption of the SN65LVDS9638DGN varies depending on the operating frequency and mode. Typically, the device consumes around 150-200 mW of power when operating at 1.485 Gbps. However, this value can be reduced by using the device's power-down mode or adjusting the output current.
To troubleshoot issues with the SN65LVDS9638DGN, it is recommended to follow a systematic approach, starting with verifying the power supply and clock signals, then checking the device's configuration and signal routing, and finally using oscilloscopes and logic analyzers to debug the signal transmission.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS9638DGN Overview

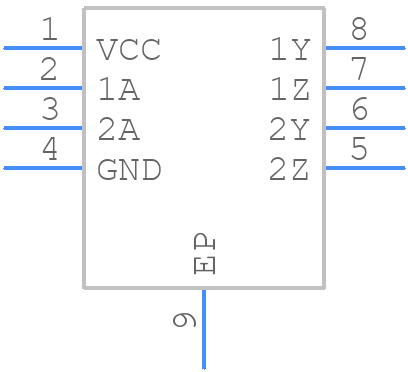

Use the download button to access the SN65LVDS9638DGN schematic symbol, PCB footprint, and 3D model.
