The maximum cable length supported by the SN65LVDS96DGG is approximately 10 meters (33 feet) at a data rate of 1.485 Gbps. However, this length can vary depending on the specific application, cable quality, and environmental conditions.
To ensure signal integrity and minimize EMI, use shielded cables, keep the transmitter and receiver close together, use a common ground plane, and follow proper PCB layout and routing guidelines. Additionally, consider using EMI filters or common-mode chokes to reduce emissions.
The recommended termination scheme for the SN65LVDS96DGG is a 100-ohm differential termination resistor at the receiver end. This helps to reduce reflections, improve signal quality, and minimize power consumption.
No, the SN65LVDS96DGG is specifically designed for LVDS (Low-Voltage Differential Signaling) applications and is not compatible with TTL or CMOS signal levels. Using it with non-LVDS signals may result in incorrect operation or damage to the device.
To handle hot swapping or hot plugging with the SN65LVDS96DGG, use a hot-swap controller or a power sequencer to ensure that the power supply is stable and the device is properly initialized before data transmission begins. Additionally, consider using a fault-tolerant design to prevent damage from unexpected power-on or power-off events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS96DGG Overview

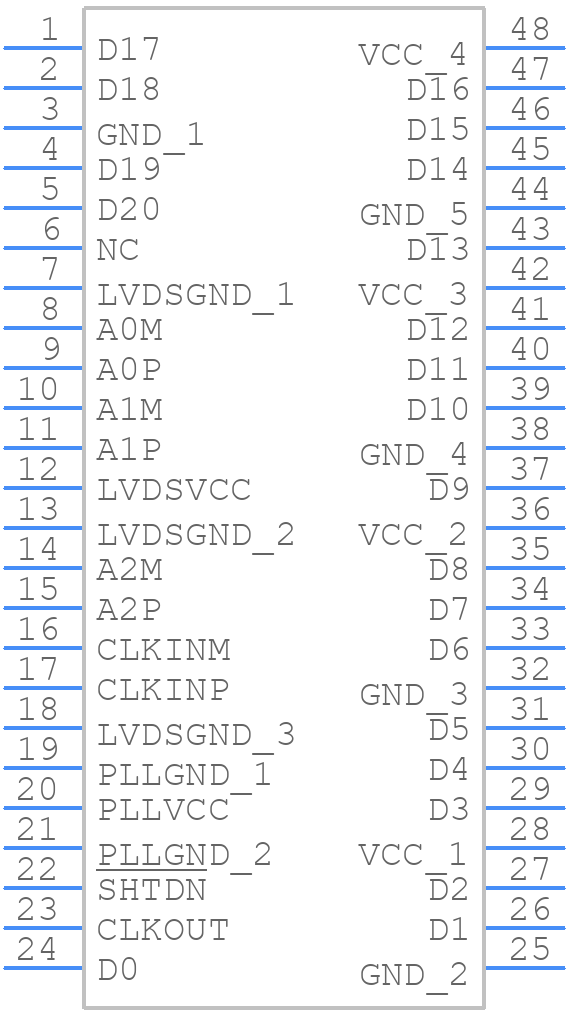

Use the download button to access the SN65LVDS96DGG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
