Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SN65LVDT348PWR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour on the PCB can be used to dissipate heat. Additionally, the device's thermal resistance can be reduced by using a heat sink or a thermal interface material.
The maximum cable length supported by the SN65LVDT348PWR depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 1 Gbps. Longer cable lengths may be possible at lower data rates.
The SN65LVDT348PWR has several configuration options that can be set through external resistors or through the use of a microcontroller. The device's configuration can be customized for a specific application by setting the transmission speed, receiver sensitivity, and other parameters. Texas Instruments provides a configuration tool and application notes to help with the configuration process.
The SN65LVDT348PWR is designed to meet the electromagnetic compatibility (EMC) requirements of various industry standards, including IEC 61000-4-2 and IEC 61000-4-3. The device's EMC performance can be further improved by following proper PCB layout and design guidelines, as well as using shielding and filtering techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDT348PWR Overview

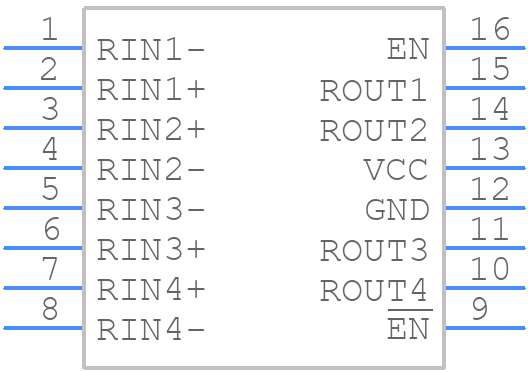

Use the download button to access the SN65LVDT348PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
