The maximum cable length depends on the specific application and the signal frequency. As a general rule, the maximum cable length for LVDS signals is around 10-15 meters. However, it's recommended to consult the TI application notes and perform signal integrity simulations to determine the optimal cable length for a specific design.
The SN65MLVD203BRUMT has internal 100-ohm differential termination resistors, so no external termination resistors are required. However, it's recommended to add external AC-coupling capacitors (typically 100 nF) to the LVDS signals to block any DC offset and improve signal quality.
The power consumption of the SN65MLVD203BRUMT depends on the operating frequency and the output load. According to the datasheet, the typical power consumption is around 15 mA at 3.3 V supply voltage and 100 MHz operating frequency. However, it's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
No, the SN65MLVD203BRUMT is designed to operate with a 3.3 V supply voltage. Using a 5 V supply voltage may damage the device or affect its performance. If a 5 V supply voltage is required, a voltage regulator or level translator may be needed to step down the voltage to 3.3 V.
To ensure signal integrity with the SN65MLVD203BRUMT, it's recommended to follow proper PCB design practices, such as using differential pairs, minimizing signal routing, and avoiding signal reflections. Additionally, it's recommended to perform signal integrity simulations and measurements to verify the signal quality and make any necessary adjustments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65MLVD203BRUMT Overview

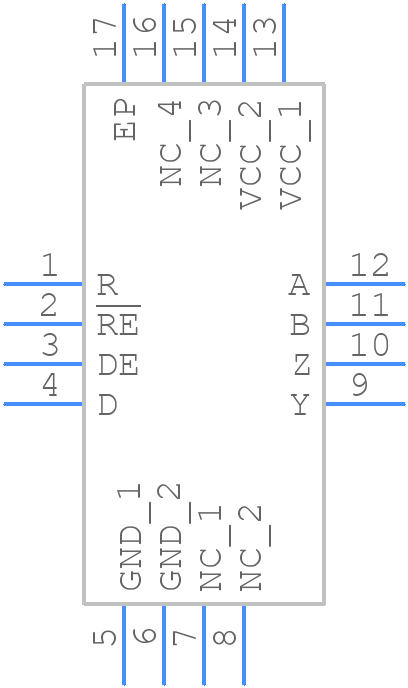

Use the download button to access the SN65MLVD203BRUMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65M,
or try a keyword search, such as Line Driver or Receivers
