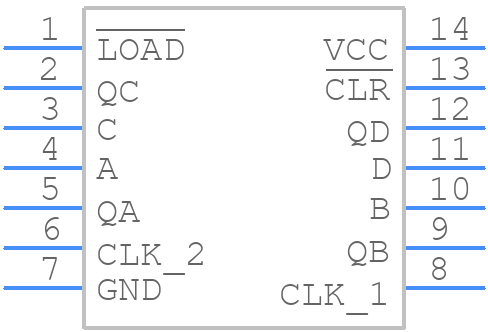

SN74196N - Texas Instruments

SN74196N Details

• Manufacturer Part Number:

  SN74196N

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, MS-001AA, DIP-14

• Pin Count:

  14

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS

• Count Direction:

  UP

• Family:

  TTL/H/L

• JESD-30 Code:

  R-PDIP-T14

• Length:

  19.305 mm

• Load Capacitance (CL):

  15 pF

• Load/Preset Input:

  YES

• Logic IC Type:

  DECADE COUNTER

• Max Frequency@Nom-Sup:

  50000000 Hz

• Max I(ol):

  0.016 A

• Mode of Operation:

  ASYNCHRONOUS

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Power Supply Current-Max (ICC):

  59 mA

• Prop. Delay@Nom-Sup:

  42 ns

• Propagation Delay (tpd):

  42 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Trigger Type:

  NEGATIVE EDGE

• Width:

  7.62 mm

• fmax-Min:

  50 MHz
