The maximum clock frequency of the SN7473N is 10 MHz, but it can be affected by factors such as supply voltage, temperature, and load capacitance. It's recommended to check the device's timing characteristics and perform thorough testing to ensure reliable operation at higher frequencies.
To ensure proper reset, connect the CLR (clear) input to a pull-up resistor and a capacitor to ground. This will ensure that the device is reset during power-up and that the outputs are in a known state. Additionally, make sure to follow the recommended power-up sequence and timing in the datasheet.
The recommended operating voltage range for the SN7473N is 4.5V to 5.5V. Operating the device outside of this range may affect its performance, reliability, and functionality. It's recommended to use a voltage regulator or a power supply with a tight tolerance to ensure stable operation.
While the SN7473N is typically used in 5V systems, it can be used in 3.3V systems with some limitations. The device's performance and functionality may be affected, and the output voltage levels may not be compatible with 3.3V logic. It's recommended to check the device's datasheet and perform thorough testing to ensure reliable operation in a 3.3V system.
The output enable (OE) input is active-low, meaning that the outputs are enabled when OE is low and disabled when OE is high. Make sure to connect OE to a valid logic level or use a pull-up resistor to ensure that the outputs are properly enabled or disabled.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN7473N Overview

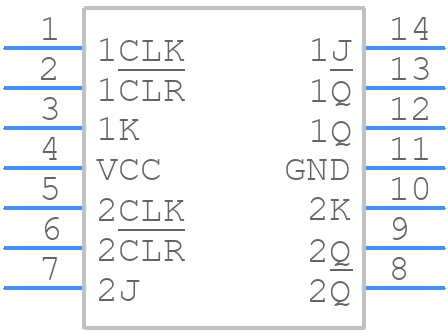

Use the download button to access the SN7473N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN747,
or try a keyword search, such as FF/Latches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
